All-in-One:concurrent capture of Bluetooth Low Energy, Wi-Fi 1x1, raw spectrum, HCI and logic, all synchronized to sub-microsecond precision
Wideband Capture:rock-solid capture of all Bluetooth Low Energy channels

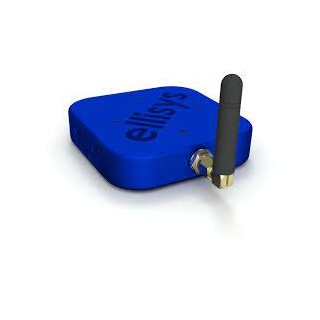

Extremely Compact:pocket-sized at 7.5 x 7.5 x 1.7 cm (2.9 x 2.9 x 0.7'')
USB Powered:ultimately portable, convenient and environmentally friendly
Reprogrammable Digital Radio:support for new specifications with a simple software update, without hardware changes
Wi-Fi:debug your Wi-Fi a/b/g/n and BLE connections simultaneously, as well as coexistence
Raw 2.4 GHz Spectrum Capture:characterize the wireless environment and visualize interferences
Professional Software:use the acclaimed, widely adopted and highly flexible Ellisys multi-protocol analysis software.
All Protocols and Profiles:best-of-breed protocol decoding
Logic Analysis:visualize digital signals such as GPIOs, interrupts, debug ports, etc, concurrently and perfectly synchronized with your BLE and Wi-Fi traffic
Free Maintenance:free lifetime software updates as well as free fully-featured viewer software with unlocked hardware that can be used on any computer
Bluetooth Capture Characteristics
Ellisys Rainbow™: Wideband capture of all BLE channels
Frequency band: 2.402-2.480 GHz
Sensitivity range: From -90 to +15 dBm
Gain: Programmable from -30 to +15 dB
Modulations: All BLE modulations (GFSK 1 Mbps and 2 Mbps)
Baseband: Support of Bluetooth 5.2, upgradeable by software
Logic Capture Characteristics
Maximum bandwidth: 50 MHz
Sampling precision: 5 ns
Supported input voltage: 1.8 to 3.3V
HCI Capture Characteristics
UART transport: Up to 8 Mbit/s, automatic detection of all parameters
SPI transport: Up to 8 Mbit/s, automatic detection of all parameters
Wi-Fi Capture Characteristics
802.11 1x1 a/b/g/n (1 stream)
Channel width 2.4 GHz: 20 MHz
Channel width 5 GHz: 20 MHz
11n MCS 2.4 GHz 20 MHz channel: 0 to 7
11n MCS 5 GHz 20 MHz channel: 0 to 7
Frame encoding: BCC (LDPC not supported)
Max AMPDU size: 16,384 bytes
Timing
Clock: ±10 ppm frequency accuracy over -10 to +60 degrees Celsius range
BLE timestamp accuracy: ±125 ns
Wi-Fi timestasmp accuracy: ±1 us
Logic timestamp accuracy: ±5 ns
Embedded Memory
128 MB of FIFO memory
Data is stored in highly optimized format
Analyzed data is uploaded in real time through a USB 2.0 connection
Connectors
SMA: RF input for BLE, Wi-Fi and spectrum capture
Logic: 16 logic signals capture
Sync: Multi-unit synchronitation ports
Control: USB 2.0 connection to control PC
Power: Optional 5V power input, max 3W
Enclosure
75 x 75 x 17 mm (2.9 x 2.9 x 0.7'')
100 g (0.2 lbs)
Hardware Upgrade
The Ellisys Rainbow™ engine is automatically updated with each software release (no user intervention required)
Minimum Requirements
Intel Pentium 4, 1 GHz or compatible processor
1 GBytes of RAM
1280 x 1024 display resolution with at least 65,536 colors
