| MODELS | PEL 102 & PEL 103 |
|
| Sampling Frequency | 128 samples per cycle; 50/60Hz (16 samples/cycle 400Hz) |
| Data Storage Rate | 1 per second |
| Demand Period Storage Rate | User selectable (1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30 and 60 minutes) |
Recorded Parameters
(Single- and Poly-Phase) | V, I, W, VA, var, PF, Tan, Wh, VAh, VARh, THD (V and I),
Individual harmonics (from 1 through 50 per phase); Crest Factor (CF), Cos f / DPF |
| Event Log | Tracks and records status changes and error messages along with recorded data |
| Front Panel Indicator LEDs | Bluetooth active, recording in progress, phase connection reversal, overload, battery charging and SD Card status |
| Storage Capacity | 2GB SD card (included) is used for storage. SD cards (up to 2GB); SDHC cards (4 to 32GB) formatted FAT32 are supported |
| INPUTS | Voltage | 3 voltage input channels via 4mm safety banana jacks |
| Current | 3 current input channels via custom 4 pin jacks that accept AEMC ® probes and sensors |
|
| VOLTAGE MEASUREMENT | RANGE | RESOLUTION | * ACCURACY (% of Reading) |
| 50/60Hz | 42.5 to 69Hz | - | ±0.1Hz |
| Single-Phase RMS Voltages | 10 to 1000Vrms | 0.1V | ±0.2% Rdg ± 0.2V |
| Phase-to-Phase RMS Voltages | 17 to 1700Vrms | 0.1 to 1V | ±0.2% Rdg ± 0.4V |
| 400Hz | 340 to 460Hz | - | - |
| Single-Phase RMS Voltages | 10 to 600Vrms | 0.1V | ±1% Rdg ± 1V |
| Phase-to-Phase RMS Voltages | 17 to 1200Vrms | 0.1 to 1V | ±1% Rdg ± 1V |
| DC | 100 to 1000V | 0.1V | ±1% Rdg ± 3V (typical) |
| PT Ratios | Programmable from 50V to 65,0000V | 0.01V to 0.1V | - |
|
| Current Probe: MiniFlex ® Sensor MA193*** | 200mA to 100Arms | 1 to 100mA | ±1.2% ± 50mA |
| 0.8A to 400Arms | 10 to 100mA | ±1.2% ± 0.2A |
| 4A to 2000Arms | 0.1 to 1A | ±1.2% ± 1A |
| 20A to 10,000Arms | 0.1 to 10A | ±1.2% |
| CT Ratios | Programmable from 1:1 to 25,000:1 (probe dependent) |
|
| Active Power (P)* | -2 to 2GW | 0.001W | ±0.5% Rdg ± 0.005% Pnom |
| Reactive Power (Q)* | -2 to 2Gvar | 0.001var | ±1% Rdg ± 0.01% Qnom |
| Apparent Power (S)* | 0 to 2GVA | 0.001VA | ±0.5% Rdg ± 0.005% Snom |
| Power Factor | -1 to +1 | 0.001 | ± 0.05 |
| Tangent f (active/reactive power ratio) | -3.2 to +3.2 | 0.001 | ± 0.02 |
|
| Active Energy (EP) | 0 to 4 x 10 18 | 1Wh | ±0.5% Rdg |
| Reactive Energy (EQ) | 0 to 4 x 1018 | 1varh | ±2% Rdg |
| Apparent Energy (ES) | 0 to 4 x 1018 | 1Vah | ±0.5% Rdg |
| THD | ± 655% |
| Individual Harmonics | 1 to 50 displayed in percentage; 1 to 7 at 400Hz |
| External Supply | 110V/250V (10%) @ 50/60Hz; 400Hz |
| Back-Up Power Source/Charge Time | Rechargeable 8.4V NiMH battery pack / Approximately 5 hours |
| Battery Life | 30 minutes minimum, 60 minutes typical |
|
| Communication Ports | USB 2.0, Ethernet (RJ45), Wireless Bluetooth Class 1 ** |
| Dimension/Weight | 10.08 x 4.92 x 1.46" (256 x 125 x 37mm) / <1kg |
| Case/Index of Protection | Double insulated, rubber over-molded, polycarbonate UL94 V1 rated / IP54 non operating |
| Mounting/Security | Embedded magnets on back side, keyhole slot on back side / Kensington anti-theft system |
|

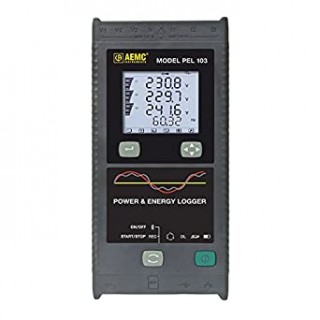

| Display Type for Model PEL 103 | 2.63 x 2.16" (67 x 55mm), four line, monochrome, backlit LCD with adjustable brightness and contrast |
|
| Operating Temperature/Relative Humidity | 50° to 122°F (10° to 50°C) / up to 85% |
| Storage Temperature | -4° to 122°F (-20° to 50°C) with batteries; -4° to 158°F (-20° to 70°C without batteries) |
| Safety Rating/CE Rating | Complies with IEC 61010-1:Ed3, and IEC 61010-2-030:Ed1 for 1000V CAT III / 600V CAT IV, Pollution Degree 2 / Yes |
* Maximum value is current probe dependent.
** Computers with Class II Bluetooth will restrict range to 40 ft. Computers without Bluetooth will require a Class I or Class II Bluetooth radio adapter.
*** Maximum current reduced by a factor of 2 for 400Hz fundamental frequency. |
