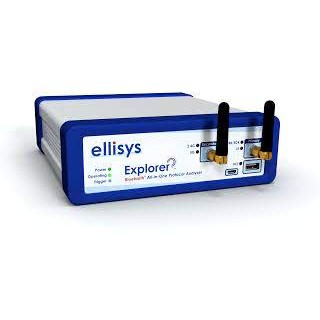

All-in-One:concurrent capture of BR/EDR, Low Energy, Wi-Fi, spectrum, HCI, logic, UART, SPI, I2C, SWD, Audio I2S, and WCI-2, all synchronized to nanoseconds precision
Bluetooth Wideband Capture:easy and rock-solid capture of any traffic, including discovery / connection traffic and SSP pairing
Reprogrammable Digital Radio:support for new specifications without hardware changes
Multi-Piconet Support:see multiple piconets and scatternets, without limitations
All Protocols and Profiles:best-of-breed protocol decoding
Integrated Audio Analysis:listen to captured audio over-the-air, including HCI audio and I2S, within the software, in sync with all other traffic
Spectrum Display:characterize the wireless environment and visualize coexistence issues
Message Sequence Chart:create charts automatically from the powerful Ellisys protocol display
Free Maintenance:Free lifetime software updates as well as free fully-featured viewer software with unlocked hardware that can be used on any computer.
Bluetooth Capture Characteristics
Ellisys Rainbow™: Industry's first wideband concurrent capture of all Bluetooth channels. Introduced in 2010.
Frequency band: 2.402-2.480 GHz
Sensitivity range: From -90 to +15 dBm
Gain: Programmable from -30 to +15 dB
Modulations: All BR/EDR/LE modulations (GFSK 1/2Mbps, p/4-DQPSK, 8-DPSK)
Baseband: Support of Bluetooth 5.2, upgradeable by software. Preliminary support of non-released specifications available.
Wi-Fi Capture Characteristics
802.11 2x2 a/b/g/n (2 streams)
Channel width 2.4GHz: 20MHz or 40MHz, configurable
Channel width 5GHz: 20MHz or 40MHz
11n MCS 2.4GHz 20MHz channel: 0 to 15
11n MCS 2.4GHz 40MHz channel: 0 to 7
11n MCS 5GHz 20MHz channel: 0 to 7
Guard Interval: 800ns and 400ns GI
Frame encoding: BCC (LDPC not supported)
Max AMPDU size: 16,384 bytes
Logic Capture Characteristics
Maximum bandwidth: 20 MHz
Sampling precision: 5 ns
Supported input voltage: 1.8 to 7V
HCI Capture Characteristics
USB HCI transport: Low, Full, and High Speed, with automatic detection
UART HCI transport: Up to 8 Mbit/s, automatic detection of all parameters
SPI HCI transport: Up to 8 Mbit/s, automatic detection of all parameters
Low-speed Serial Capture Characteristics
UART: Up to 8 Mbit/s automatic detection of all parameters
SPI: Up to 8 Mbit/s, automatic detection of all parameters
I2C: Up to 1 Mb/s
SWD: Up to 8 Mb/s
Timing
Clock: ±10ppm frequency accuracy over -10 to +60 degrees Celsius range
BR/EDR/LE timestamp accuracy: ±125ns
Wi-Fi timestamp accuracy: ±1us
USB HCI timestamp accuracy: ±16.7ns
Logic timestamp accuracy: ±5ns
Embedded Memory
128 MB of FIFO memory
Data is stored in highly optimized format
Analyzed data is uploaded in real time through a USB 2.0 connection
