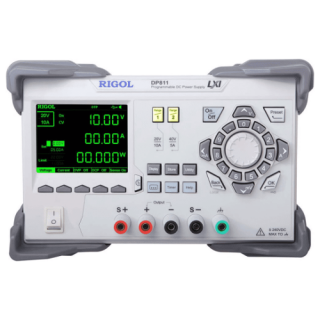

Rigol DC파워서플라이 DP811 싱글채널 요약정보 및 구매

Range1 Range2 0 to 20V/0 to 10A 0 to 40V/0 to 5A 10mV to 22V/10mA to 11A 10mV to 44V/10mA to 5.5A

제조사	RIGOL
브랜드	RIGOL
모델명	DP811
판매가격	전화문의
	(상기 금액은 부가세 별도입니다.)

상품 정보

상품정보
관련상품 0
상품문의 0

상품 기본설명

Range1 Range2 0 to 20V/0 to 10A 0 to 40V/0 to 5A 10mV to 22V/10mA to 11A 10mV to 44V/10mA to 5.5A

상품 상세설명

리니어 파워서플라이의 특징인 순도 높은 출력

리플노이즈가 극도로 낫은 수치 350uVrms/2mVpp

빠른 응답시간 50uS 미만

타이밍 출력

사용자가 각 스텝과 전압/전류 및 지속시간을 미리 설정하여 출력하는

시퀀스를 코딩없이 간편하게 출력 가능합니다.

V/A/W 동시 디스플레이 및 파형 관측

전압,전류 뿐 아니라 전력값을 표시하고 이 추이를 디스플레이 합니다.가령, 배터리 충전시 같은 전압/전류 프로파일을 시각화하여 보는데에 편리합니다.

출력분석, 모니터 및 프리셋 기능

3.5인치 와이드 스크린

디지털 표시뿐 아니라 각종 전압,전류의 다양한 형식의 그래프로 경향을 파악하기 좋습니다

Model	Number of Channels
DP832	3
DP831	3
DP821	2
DP811	1 (two output ranges)

DC Output (0°C to 40°C )
Channel (Range)		Voltage/Current	OVP/OCP
DP832	CH1 CH2 CH3	0 to 30V/0 to 3A 0 to 30V/0 to 3A 0 to 5V/0 to 3A	10mV to 33V/1mA to 3.3A 10mV to 33V/1mA to 3.3A 10mV to 5.5V/1mA to 3.3A
DP831	CH1 CH2 CH3	0 to 8V/0 to 5A 0 to 30V/0 to 2A 0 to -30V/0 to 2A	10mV to 8.8V/1mA to 5.5A 10mV to 33V/1mA to 2.2A -10mV to -33V/1mA to 2.2A
DP821	CH1 CH2	0 to 60V/0 to 1A 0 to 8V/0 to 10A	10mV to 66V/10mA to 1.1A 10mV to 8.8V/10mA to 11A
DP811	Range1 Range2	0 to 20V/0 to 10A 0 to 40V/0 to 5A	10mV to 22V/10mA to 11A 10mV to 44V/10mA to 5.5A

Load Regulation Rate ± (Output Percentage + Offset)
Voltage	<0.01% + 2mV
Current	<0.01% + 250μA

Linear Regulation Rate ± (Output Percentage + Offset)
Voltage	<0.01% + 2mV
Current	<0.01% + 250μA

Ripples and Noise (20Hz to 20MHz)
Normal Mode Voltage	DP832/DP831/DP821: <350μVrms/2mVpp DP811: <350μVrms/3mVpp
Normal Mode Current	<2mArms

Annual Accuracy ^[1] (25°C ± 5°C ) ± (Output Percentage + Offset)
Channel		Programming		Readback
Channel		Voltage	Current	Voltage	Current
DP832	CH1 CH2 CH3	0.05% + 20mV 0.05% + 20mV 0.1% + 5mV	0.2% + 5mA 0.2% + 5mA 0.2% + 5mA	0.05% + 10mV 0.05% + 10mV 0.1% + 5mV	0.15% + 5mA 0.15% + 5mA 0.15% + 5mA
DP831	CH1 CH2 CH3	0.1% + 5mV 0.05% + 20mV 0.05% + 20mV	0.2% + 10mA 0.2% + 5mA 0.2% + 5mA	0.1% + 5mV 0.05% + 10mV 0.05% + 10mV	0.2% + 10mA 0.1% + 5mA 0.1% + 5mA
DP821	CH1 CH2	0.1% + 25mV 0.05% + 10mV	0.2% + 10mA 0.2% + 10mA	0.1% + 25mV 0.05% + 5mV	0.15% + 10mA 0.15% + 10mA
DP811	CH1	0.05% + 10mV	0.1% + 10mA	0.05% + 10mV	0.1% + 10mA

Resolution
Channel			Programming		Readback		Display
Channel			Voltage	Current	Voltage	Current	Voltage	Current
DP832	Standard	CH1 CH2 CH3	10mV 10mV 10mV	1mA 1mA 1mA	10mV 10mV 10mV	1mA 1mA 1mA	10mV 10mV 10mV	10mA 10mA 10mA
DP832	With the high- resolution option	CH1 CH2 CH3	1mV 1mV 1mV	1mA 1mA 1mA	0.1mV 0.1mV 0.1mV	0.1mA 0.1mA 0.1mA	1mV 1mV 1mV	1mA 1mA 1mA
DP831	Standard	CH1 CH2 CH3	1mV 10mV 10mV	1mA 1mA 1mA	1mV 1mV 1mV	1mA 1mA 1mA	10mV 10mV 10mV	10mA 10mA 10mA
DP831	With the high- resolution option	CH1 CH2 CH3	1mV 1mV 1mV	0.3mA 0.1mA 0.1mA	0.1mV 0.1mV 0.1mV	0.1mA 0.1mA 0.1mA	1mV 1mV 1mV	1mA 1mA 1mA
DP821	Standard	CH1 CH2	10mV 10mV	1mA 10mA	10mV 10mV	1mA 10mA	10mV 10mV	1mA 10mA
DP821	With the high- resolution option	CH1 CH2	1mV 1mV	0.1mA 1mA	1mV 1mV	0.1mA 1mA	1mV 1mV	0.1mA 1mA
DP811	Standard	CH1	10mV	10mA	1mV	1mA	10mV	10mA
DP811	With the high- resolution option	CH1	1mV	0.5mA	0.1mV	0.1mA	1mV	1mA

Transient Response Time

Less than 50μs for output voltage to recover to within 15mV following a change in output current from full load to half load or vice
versa.

Command Processing Time ^[2]

<118ms

OVP/OCP
Accuracy ± (Output Percentage + Offset)	0.5% + 0.5V/0.5% + 0.5A

Voltage Programming Control Speed (1% within the total variation range)
Channel		Rise		Fall
Channel		Full Load	No Load	Full Load	No Load
DP832	CH1 CH2 CH3	<50ms <50ms <15ms	<33ms <38ms <14ms	<46ms <46ms <24ms	<400ms <400ms <100ms
DP831	CH1 CH2 CH3	<18ms <33ms <35ms	<17ms <36ms <42ms	<20ms <44ms <45ms	<200ms <400ms <400ms
DP821	CH1 CH2	<110ms <15ms	<30ms <15ms	<110ms <20ms	<800ms <400ms
DP811	CH1	<45ms	<42ms	<51ms	<1089ms

Temperature Coefficient per °C (Output Percentage + Offset)
Channel		Voltage	Current
DP832	CH1 CH2 CH3	0.01% + 5mV 0.01% + 5mV 0.01% + 2mV	0.01% + 2mA 0.01% + 2mA 0.01% + 2mA
DP831	CH1 CH2 CH3	0.01% + 2mV 0.01% + 2mV 0.01% + 2mV	0.02% + 3mA 0.02% + 3mA 0.02% + 3mA
DP821	CH1 CH2	0.01% + 3mV 0.01% + 3mV	0.02% + 3mA 0.02% + 3mA
DP811	CH1	0.01% + 3mV	0.02% + 3mA

Stability ^[3] ± (Output Percentage + Offset)
Channel		Voltage	Current
DP832	CH1 CH2 CH3	0.02% + 2mV 0.02% + 2mV 0.01% + 1mV	0.05% + 2mA 0.05% + 2mA 0.05% + 2mA
DP831	CH1 CH2 CH3	0.03% + 1mV 0.02% + 2mV 0.02% + 2mV	0.1% + 3mA 0.05% + 1mA 0.05% + 1mA
DP821	CH1 CH2	0.02% + 1mV 0.02% + 1mV	0.1% + 1mA 0.1% + 1mA
DP811	CH1	0.02% + 1mV	0.1% + 1mA

Mechanical
Dimensions	239mm(W) x 157mm(H) x 418mm(D)
Weight	DP832: 10.5kg DP831: 9.75kg DP821: 10.0kg DP811: 10.3kg

Power
AC Input (50Hz-60Hz)	100Vac ± 10%, 115Vac ± 10%, 230Vac ± 10% (maximum 250Vac)
Maximum Power	DP832: 521VA DP831: 416VA DP821: 450VA DP811: 503VA

I/O
USB DEVICE	1
USB HOST	1
LAN	1 (Option)
RS232	1 (Option)
Digital IO	1 (Option)
USB-GPIB	1 (Option, extend a GPIB interface using the USB-GPIB interface converter)
Rear Output Interface	1 for DP811

Environment
Cooling Method	Fan Cooling
Working Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 80% relative humidity
Altitude	Below 1500m

Note^[1]: The accuracy parameters are acquired via calibration under 25 after 1-hour warm-up.
Note^[2]: The maximum time required for the output to change accordingly after receiving the Apply and Source commands.
Note^[3]: The variation of the output within 8 hours after 30-minute warm-up when the load circuit and environment temperature are constant.

Tech Specs

Power Supplies/DC Power Supplies Template


Outputs	Single
Voltage Output 1	Variable
Max Voltage Output 1	40 V
Programmable	No
Max Current Output 1	10 A
Meter Type	Digital
Linear/Switching	Linear
Max Display Resolution Current	10 mA
Max Display Resolution Voltage	10 mV
Constant current/voltage	Yes
Remote Sensing	Yes

Test Equipment General Attributes


Unique Features	2 Ranges; total power up to 200W Low Ripple Noise <350 uVrms/2mVpp Fast transient response time: <50 us Up to 10A or 40 V OVP/OCP/OTP protection functions Built in V, A, W measurements and waveform display Optional output Delay, Analysis, Monitor, and Trigger functions 3.5 inch TFT Display Connectivity including USB Host & Device with LXI option
Warranty	3 YEARS
Safety Approval	CE, CSA
Interfaces I/O	USB Host, USB
Storage	Internal Memory, USB Flash Drive
Product Weight	22.71 LBS
Product Height	6.2 IN
Product Length	16.5 IN
Product Width	9.41 IN
Data Logging	Yes
HTS/Schedule B Number	8504409510
ECCN Number	3A992.a
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
