dditional Features:

• Logic analyzer configuration
  • 15-inch (38.1 cm) color display with touch screen available
  • 68-channel portable logic analyzer with up to 32 M acquisition memory depth, equivalent model with built-in pattern generator
  • Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
• Timing analysis (asynchronous sampling)
  • 4 GHz (250 ps) timing zoom with 64 K memory
  • 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
  • 500 MHz transitional timing
• State analysis (synchronous sampling)
  • State clock rates up to 450 MHz
  • Data rates: up to 500 Mb/s
  • Automated threshold/sample position setup for accurate measurements on high-speed buses
  • Simultaneous eye diagrams on all channels identify problem signals quickly
• Configuration considerations
  • Selectable memory depths: 1 M, 4 M, 16 M, 32 M
  • Compatible with 40-pin logic analyzer probes. Probes are ordered separately.

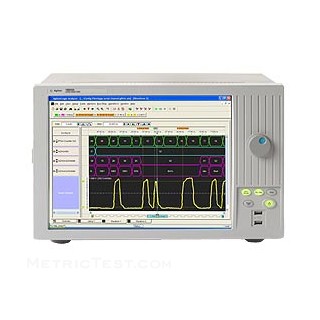

The Agilent 16800 Series portable logic analyzers deliver an exclusive combination of logic analysis, pattern generation, application software and innovative probing...all at a price that will fit your budget.
