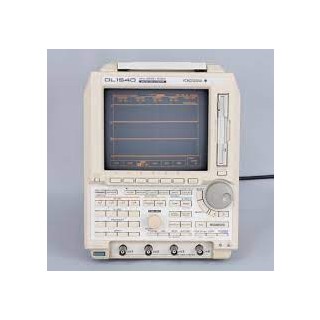

Yokogawa DL1540 Oscilloscope, Digital: 150MHz,200MSa/s,4ch (Stand alone)

The Yokogawa DL1540 oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.

The Yokogawa DL1540 oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

Feature
Bandwidth: 150MHz
No. of channels: 4ch
Max. single ch. sampling rate: 200MSa/s

4 Channel DL1540 & DL1540/L

120kW of memory on two channels or 56kW on all four channels (DL1540)

2MW of memory on two channels or 1MW on all four channels (DL1540/L)

200 MS/s sampling rate on two channels or 100 MS/s on all four channels

150 MHz bandwidth

All channels are full range, 1mV/div to 5V/div

Enhanced trigger option for pattern, OR and pulse width triggering

Built-in printer option

Standard floppy disk drive stores panel settings or waveform data in various formats

8 bit Vertical Resolution

Small size, 8.5"w X 11"d X 11"h, weighs only

12 lb., with 7" CRT

Isolation Amplifier (option)

2 Channel

DC to Floppy drive
Freq
Vmax/Vmin
displays 8 traces
GO/NOGO
21 Waveform meas.
Snapshot
Infinite accumilatio
