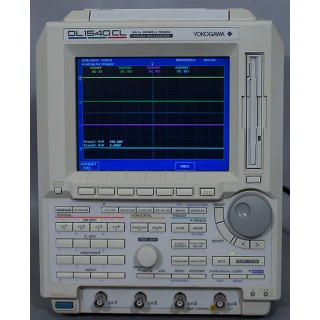

Yokogawa DL1540CL Color Digital Oscilloscope



Option Description:
D: UL/CSA Standard Power Cord
B5: Built-in printer
F1: Extended trigger function
E1: Two additional probes (probes not included)
V1: VGA output

Description:
The DL1540C/DL1540CL is a portable digital oscilloscope that has a color TFT LCD and packs many advanced features into a small case. In addition to impressive basic specifications, Yokogawa maintained the multi-channel and long memory features common to all Yokogawa oscilloscopes. The color display makes it easier to read oscilloscope data, and the unit is about 1 kg lighter than conventional digital oscilloscopes. These improvements make it easier to efficiently measure increasingly complex and diverse signals, helping to improve the efficiency of the development process.

Key Features:

6.4-inch Color TFT LCD with Wide Viewing Angle - The display clearly identifies waveforms displayed on multiple channels.
Small and Lightweight (approx. 5 kg) - The unit weighs about 1 kg less than conventional models.
200 MS/s Maximum Sampling Rate, 150 MHz Analog Bandwidth
Maximum Record Length: 2 M Words
Maximum Screen Refresh Rate: 60 Hz
Color Printing Feature: The oscilloscope can be connected to an external color printer through a commercial available GP-IB/Centronics conversion adapter for direct color printer
VGA Output (option)
Built-in Printer (option) - The built-in printer can be used to print out screen shots and enlarged waveforms (long copies), and for real-time printing.
Pulse Counting Function - This function automatically counts the number of pulse waveforms in a specified interval.
