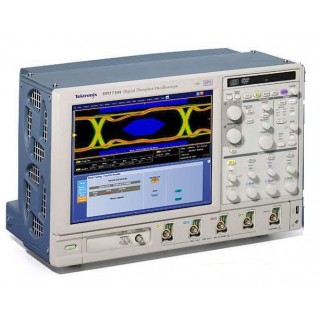

중고 디지털오실로스코프 판매 TEKTRONIX DPO7104, 1GHz > 오실로스코프

중고 디지털오실로스코프 판매 TEKTRONIX DPO7104, 1GHz 요약정보 및 구매

중고 디지털 오실로스코프

제조사 TEKTRONIX
브랜드 텍트로닉스
품명 디지털오실로스코프
모델명 DPO7104
판매가격 전화문의
(상기 금액은 부가세 별도입니다.)

제품관련 문서 / 파일

상품 정보

상품 기본설명

중고 디지털 오실로스코프

상품 상세설명

구입 및 기술문의 : 010-4221-0660



 DPO7000C 시리즈는 최대 3.5 GHz의 대역폭과 최대 40 GS/s의 샘플링 속도를 제공하므로 중요한 고속 신호를 분석하는 데 적합합니다. 30개 이상의 분석 패키지가 통신 표준, 지터 분석, 메모리 버스 표준, 벡터 분석 등을 자세히 측정할 수 있는 기능을 제공합니다. Windows 운영 체제를 사용하면 장비에서 바로 분석 소프트웨어를 실행할 수 있습니다. 빠른 파형 캡처 속도, 고급 트리거링, 프로토콜 디코딩 및 검색 기능으로 복잡한 문제를 빠르게 해결할 수 있습니다.



  • 3.5 GHz Bandwidth Model for Serial and Digital Applications
  • 2.5 GHz, 1 GHz, and 500 MHz Bandwidth Models for All Applications
  • Up to 40 GS/s Real-time Sample Rate on One Channel and up to 10 GS/s on All Four Channels
  • Up to 400 Megasamples Record Length with MultiView Zoom™
  • >250,000 wfms/s Maximum Waveform Capture Rate
  • User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
  • MyScope® Custom Windows and Right Mouse Click Menus
  • Event Search and Mark to Find Specific Events in the Entire Waveform
  • Pinpoint® Triggering for the Most Flexible and Highest Performance Triggering
  • 12.1" XGA Display with Touch Screen
  • Communications Mask Testing
  • Clock Recovery from Serial Data Streams
  • 64-bit NRZ Serial Pattern Trigger
  • Serial Protocol Triggering & Decode (I2C, SPI, RS-232, CAN, LIN, Flexray)
  • MIPI® D-PHY, Ethernet, USB 2.0 Compliance Testing, Jitter, Timing, Eye Diagram, Power, DDR Memory Bus Analysis, CAN, LIN Network Design
  • OpenChoice® Software with Microsoft Windows XP OS



Digital Phosphor Oscilloscopes



DPO7000 Series



Characteristics

Vertical System





DPO7054

DPO7104

DPO7254

Input Channels

4

Hardware Analog Bandwidth (-3 dB)

500 MHz

1 GHz

2.5 GHz*1

Rise Time 10% to 90% (typical)

415 ps

225 ps

150 ps

Rise Time 20% to 80% (typical)

260 ps

160 ps

100 ps

DC Gain Accuracy

±1.25% (±1% typical) with offset/position set to 0

Hardware Bandwidth Limits

250 MHz or 20 MHz

Input Coupling

AC, DC, GND

Input Impedance (software selectable)

1 MO ±1% or

12pF ±2pF or

50 O ±1%

Input Sensitivity, 1 MO

1 mV/div to 10 V/div

Input Sensitivity, 50 O

1 mV/div to 1 V/div

Vertical Resolution

8 bit (>11 bit with averaging)

Max Input Voltage, 1 MO

±150 V CAT I, derate at 20 dB/decade to 9 VRMSabove 200 kHz

Max Input Voltage, 50 O

5 VRMS, with peaks less than ±24 V

Position Range

±5 divisions

Offset Range

1 mV/div to 50 mV/div: ±1 V

50.5 mV/div to 99.5 mV/div: ±0.5 V

100 mV/div to 500 mV/div: ±10 V

505 mV/div to 995 mV/div: ±5 V

1 V/div to 5 V/div: ±100 V

5.05 V/div to 10 V/div: ±50 V

Offset Accuracy

1 mV/div to 9.95 mV/div: ±0.2% (offset value-position) ±0.1 div ±1.5 mV

10 mV/div to 99.5 mV/div: ±0.35% (offset value-position) ±0.1 div ±1.5 mV

100 mV/div to 1 V/div: ±0.35% (offset value-position) ±0.1 div ±15 mV

1.01 V/div to 10 V/div: ±0.25% (offset value-position) ±0.1 div ±150 mV

Delay between any two channels (typical)

=100 ps (50 O, DC coupling and equal V/div at or above 10 mV/div)

Channel-to-channel Isolation (Any Two Channels at Equal Vertical Scale Settings)

=100:1 at =100 MHz and =30:1 above



*1 Typical system bandwidth of DPO7254 with TAP2500 is 2.5 GHz.

Time Base System




DPO7054

DPO7104

DPO7254

Time Base Range

with Opt. 2SR

100 ps/div to 1000 s/div

50 ps/div to 1000 s/div

50 ps/div to 1000 s/div

25 ps/div to 1000 s/div

25 ps/div to 1000 s/div

-

Time Resolution (in ET mode)

with Opt. 2SR

1 ps

500 fs

500 fs

250 fs

250 fs

-

Time Base Delay Time Range

5 ns to 250 s

Channel-to-channel Deskew Range

±200 ns

Delta Time Measurement Accuracy

((0.06/sample rate)+(2.5 ppm×Reading)) RMS

Trigger Jitter (RMS)

1.5 psRMS (typical)

Jitter Noise Floor

<1 ps RMS (<2 ps peak) for record duration <10 µs

<2.5 ps RMS for record duration <30 ms

<65 parts/trillion for record durations <10 s

Time Base Accuracy

±2.5 ppm + Aging <1 ppm per year

Acquisition System




DPO7054

DPO7104

DPO7254

Real-time Sample Rates

1 channel (max)

10 GS/s

20 GS/s

40 GS/s

   with Opt. 2SR

20 GS/s

40 GS/s

-

2 channels (max)

5 GS/s

10 GS/s

20 GS/s

   with Opt. 2SR

10 GS/s

20 GS/s

-

3-4 channels (max)

2.5 GS/s

5 GS/s

10 GS/s

   with Opt. 2SR

5 GS/s

10 GS/s

-

Equivalent Time Sample Rate (max)

4 TS/s (for repetitive signals)

Maximum Record Length per Channel with Standard Configuration

40 M (1-CH.), 20 M (2-CH.), 10 M (4-CH.)

   with Record Length Opt. 2RL

80 M (1-CH.), 40 M (2-CH.), 20 M (4-CH.)

   with Record Length Opt. 5RL

200 M (1-CH.), 100 M (2-CH.), 50 M (4-CH.)

   with Record Length Opt. 10RL

-

-

400 M (1-CH.), 200 M (2-CH.), 100 M (4-CH.)

Maximum Duration at Highest Real-time Resolution (1-CH)




DPO7054

DPO7104

DPO7254

Resolution (Single-shot)

with Opt. 2SR

100 ps (10 GS/s)

50 ps (20 GS/s)

50 ps (20 GS/s)

25 ps (40 GS/s)

25 ps (40 GS/s)

-

Max Duration with Standard Memory

with Opt. 2SR

4 ms

2 ms

2 ms

1 ms

1 ms

-

Max Duration with Opt. 2RL

with Opt. 2SR

8 ms

4 ms

4 ms

2 ms

2 ms

-

Max Duration with Opt. 5RL

with Opt. 2SR

20 ms

10 ms

10 ms

5 ms

5 ms

-

Max Duration with Opt. 10RL

-

-

10 ms

-

Acquisition Modes




DPO7054 / DPO7104 / DPO7254

FastAcq Acquisition Mode

FastAcq optimizes the instrument for analysis of dynamic signals and capture of infrequent events

Maximum FastAcq Waveform Capture Rate

>250,000 wfms/s

Waveform Database

Accumulate waveform database providing three-dimensional array of amplitude, time, and counts

Sample

Acquire sampled values

Peak Detect

Captures narrow glitches at all real-time sampling rates: 1 ns at =125 MS/s; 1/sample rate at =250 MS/s

Averaging

From 2 to 10,000 waveforms included in average

Envelope

From 1 to 2×109 waveforms included in min-max envelope

Hi-Res

Real-time boxcar averaging reduces random noise and increases resolution

Roll Mode

Up to 10 MS/s with a maximum record length of 40 M

Pinpoint™ Trigger System




DPO7054 / DPO7104 / DPO7254

Sensitivity

Internal DC Coupled

0.5 div DC to 50 MHz increasing to 1 div at 2 GHz

External (Auxiliary Input) 1 MO

250 mV from DC to 50 MHz increasing to 350 mV at 250 MHz

Trigger Characteristics

A Event and Delayed B Event Trigger Types

Edge, Glitch, Runt, Width, Transition Time, Timeout, Pattern, State, Setup/Hold, Window — all except Edge, Pattern and State can be Logic State qualified by up to two channels

Low Speed Serial Protocol Trigger Type (A Event only)

I2C, SPI, RS-232, CAN (only with Opt. LSA)

Trigger on address, data, and special handshaking states and other conditions.

Main Trigger Modes

Auto, Normal and Single

Trigger Sequences

Main, Delayed by Time, Delayed by Events, Reset by Time, Reset by State, Reset by Transition. All sequences can include separate horizontal delay after the trigger event to position the acquisition window in time.

Communications-related Triggers (requires Opt. MTM)

Support for AMI, HDB3, BnZS, CMI, MLT3 and NRZ encoded communications signals. Select among isolated positive or negative one, zero pulse form or eye patterns as applicable to the standard.

Serial Pattern Trigger (on DPO7254 only, and requires Opt. PTM)

Up to 64 bit serial word recognizer, bits specified in binary (high, low, don't care) or hex format. Trigger on NRZ-encoded data up to 1.25 GBaud.

Video Type Trigger Formats and Field Rates

Triggers from negative sync composite video, field 1 or field 2 for interlaced systems, any field, specific line, or any line for interlaced or non-interlaced systems. Supported systems include NTSC, PAL, SECAM, and HDTV 1080/24sF, 1080p/25, 1080i/50, 1080i/60, 1080p/24, 720p/60, 480p/60

Clock Recovery System (on DPO7254 only, and optional only)

Clock Recovery Phase Locked Loop Bandwidth

Fixed at FBaud/500

Frequency Range

1.5 MBaud to 1.56 GBaud

Clock Recovery Jitter (RMS)

<0.25% bit period + 5 psRMS for PRBS data patterns

<0.25% bit period + 5 psRMS for repeating "0011” data pattern

Tracking/Acquisition Range

±5% of requested baud

Minimum Signal Amplitude needed for Clock Recovery

1 divisionpk-pk up to 1.56 GBaud

Trigger Level Range

Internal

±12 divisions from center of screen

AUX Trigger

TekVPI interface; ±5 V (50 O); 150 V CAT I, derate at 20 dB/decade to 9 VRMSabove 200 KHz (1 MO)

Line

Fixed at 0 V

Trigger Coupling

DC, AC (attenuates <60 Hz), HF Rej (attenuates >30 kHz), LF Rej (attenuates <80 kHz), Noise Reject (reduces sensitivity)

Trigger Holdoff Range

250 ns min to 12 s max


Trigger Modes



Edge - Positive or negative slope on any channel or front panel auxiliary input. Coupling includes DC, AC, noise reject, HF reject and LF reject.

Glitch - Trigger on or reject glitches of positive, negative or either polarity. Minimum glitch width is down to 200 ps (typical) with re-arm time of 250 ps (only on DPO7254).

Width - Trigger on width of positive or negative pulse either within or out of selectable time limits (down to 225 ps).

Runt - Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again. Event can be time- or logic-qualified.

Timeout - Trigger on an event which remains high, low or either, for a specified time period. Selectable from 300 ps.

Transition - Trigger on pulse edge rates that are faster or slower than specified. Slope may be positive, negative or either.

Setup/Hold - Trigger on violations of both setup time and hold time between clock and data present on any two input channels.

Pattern - Trigger when pattern goes false or stays true for specified period of time. Pattern (AND, OR, NAND, NOR) specified for four input channels defined as high, low, or don't care.

State - Any logical pattern of channels (1, 2, 3) clocked by edge on channel 4. Trigger on rising or falling clock edge.

Window - Trigger on an event that enters or exits a window defined by two user-adjustable thresholds. Event can be time- or logic-qualified.

Trigger Delay by Time - 5 ns to 250 s.

Trigger Delay by Events - 1 to 10,000,000 events


Waveform Measurements



Automatic Measurements - 53, of which 8 can be displayed on screen at any one time; measurement statistics, user-definable reference levels, measurement within gates isolating the specific occurrence within an acquisition to take measurements on.

Amplitude Related - Amplitude, High, Low, Maximum, Minimum, Peak to Peak, Mean, Cycle Mean, RMS, Cycle RMS, Positive Overshoot, Negative Overshoot.

Time Related - Rise Time, Fall Time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Period, Frequency, Delay.

Combination - Area, Cycle Area, Phase, Burst Width

Histogram Related - Waveform Count, Hits in Box, Peak Hits, Median, Maximum, Minimum, Peak to Peak, Mean (µ), Standard Deviation (sigma), µ+1sigma, µ+2sigma, µ+3sigma.

Eye Pattern Related - Extinction Ratio (absolute,%, dB), Eye Height, Eye Width, Eye Top, Eye Base, Crossing %, Jitter (pk-pk, RMS, 6sigma), Noise (pk-pk, RMS), Signal/Noise Ratio, Cycle Distortion, Q-Factor.


Waveform Processing/Math



Arithmetic - Add, Subtract, Multiply, Divide Waveforms and Scalars.

Algebraic Expressions - Define extensive algebraic expressions including Waveforms, Scalars, User-adjustable Variables and Results of Parametric Measurements e.g. (Integral (CH.1–Mean(CH.1))×1.414×VAR1).

Math Functions - Average, Invert, Integrate, Differentiate, Square Root, Exponential, Log10, Loge, Abs, Ceiling, Floor, Min, Max, Sin, Cos, Tan, ASin, ACos, ATan, Sinh, Cosh, Tanh.

Relational - Boolean result of comparison >, <, >=, <=, ==, !=

Frequency Domain Functions - Spectral Magnitude and Phase, Real and Imaginary Spectra.

Vertical Units -

Magnitude: Linear, dB, dBm

Phase: Degrees, radians, group delay

IRE and mV units



Window Functions - Rectangular, Hamming, Hanning, Kaiser-Bessel, Blackman-Harris, Gaussian, Flattop2, Tek Exponential.

Waveform Definition - As an arbitrary math expression.

Filtering Functions - User-definable filters. Users specify a filter containing the coefficients of the filter. Several filter files provided.

Mask Function - A function that generates a Waveform Database pixmap from a sample waveform. Sample count can be defined.


Display Characteristics



Display Type - Liquid crystal active-matrix color display

Display Size - Diagonal: 307.3 mm (12.1 in.)

Display Resolution - XGA 1240 horizontal x 768 vertical pixels

Waveform Styles - Vectors, Dots, Variable Persistence, Infinite Persistence

Color Palettes - Normal, Green, Gray, Temperature, Spectral and User-defined

Display Format - YT, XY


Computer System and Peripherals



Operating System - Windows XP

CPU - Intel Pentium 4, 3.4 GHz processor

PC System Memory - 2 GB

Hard Disk Drive - Rear-panel, removable hard disk drive, 80 GB capacity

CD-R/W Drive - Front-panel CD-R/W drive with CD creation software application

DVD Drive - Read only

Mouse - Optical wheel mouse, USB interface

Printer (optional) - Thermal printer; fits in accessories pouch provided with instrument

Keyboard - Order 119-7083-00 for small keyboard (fits in pouch); USB interface and hub


Input/Output Ports



Front Panel

Probe Compensator Output - Front panel pins. Amplitude 1 V ±20% into a =50 O load; 500 mV from base to top into a 50 O load, frequency 1 kHz ±5%

Recovered Clock (for DPO7254 only) - BNC connector, =1.25 Gb/s, Output swing =130 mVpk-pk into 50 O. Requires option to enable.

Recovered Data (for DPO7254 only) - BNC connector , =1.25 Gb/s, Output swing 200 mV into 50 O. Requires option to enable

USB 2.0 Port - One front panel and four side panel mounted USB2.0 connectors

Aux Trigger Input - See Trigger specification

Side Panel

Parallel Port - IEEE 1284, DB-25 connector

Audio Ports - Miniature phone jacks for stereo microphone input and stereo line output

Keyboard Port - PS-2 compatible

Mouse Port - PS-2 compatible

LAN Port - RJ-45 connector, supports 10Base-T, 100Base-T and Gigabit Ethernet

Serial Port - DB-9 COM1 port

VGA Video Port - DB-15 female connector; connect a second monitor to use dual-monitor display mode. Supports basic requirements of PC99 specifications.

Oscilloscope VGA Video Port - DB-15 female connector, 31.6 kHz sync, EIA RS-343A compliant, connect to show the oscilloscope display, including live waveforms on an external monitor or projector

Rear Panel

Power - 90 to 264 VRMS, ±10%, 47 to 63 Hz; CAT II, <400 VA

Analog Signal Output - BNC connector provides a buffered version of the signal that is attached to the Ch 3 input when Ch 3 is selected as trigger source

Amplitude: 50 mV/div ±20% into a 1 MO load, 25 mV/div ±20% into a 50 O load

Bandwidth: 100 MHz into a 50 O load



External Time Base Reference In - BNC connector, time base system can phase-lock to external 10 MHz reference

Time Base Reference Out - BNC connector accepts TTL-compatible output of internal 10 MHz reference oscillator

Aux Trigger Output - BNC connector provides a TTL-compatible, polarity switchable pulse when the oscilloscope triggers

GPIB Port - IEEE 488.2 standard


Physical Characteristics



Benchtop Configuration

Dimensions

mm

in.

Height

292

11.48

Width

451

17.75

Depth

265

10.44

Weight

kg

lbs.

Net

15

32

Shipping

28.9

63.75

Rackmount Configuration

Dimensions

mm

in.

Height

323

12.25

Width

479

18.85

Depth (from rackmounting ear to back of instrument)

231.75

9.12

Weight

kg

lbs.

Net

17.4

37.5

Kit

2.5

5.5


Mechanical



Cooling — Required Clearance



mm

in.

Top

0

0

Bottom

0

0

Left side

0

0

Right side

76

3

Front

0

0

Rear

0

0


Environmental



Temperature

Operating - 0 °C to +50 °C, excluding CD-R/W drive; +10 °C to +45 °C, including CD-R/W drive.

Non-Operating - –40 °C to +71 °C.

Humidity

Operating - 5% to 95% relative humidity (RH) with a maximum wet bulb temperature of +29 °C at or below +50 °C, non-condensing. Upper limit derated to 45% RH above +30 °C up to +50 °C.

Non-Operating - 5% to 95% relative humidity (RH) with a maximum wet bulb temperature of +29 °C at or below +60 °C, non-condensing. Upper limit derated to 45% RH above +30 °C up to +50 °C.

Altitude

Operating - 10,000 ft. (3,048 m).

Non-Operating - 40,000 ft. (12,190 m).

Random Vibration

Operating - 0.000125 G2/Hz from 5 to 350 Hz, -3 dB/octave from 350 to 500 Hz, 0.0000876 G2/Hz at 500 Hz. Overall level of 0.27 GRMS.

Non-Operating - 0.0175 G2/Hz from 5 to 100 Hz, -3 dB/octave from 100 to 200 Hz, 0.00875 G2/Hz from 200 to 350 Hz, -3 dB/octave from 350 to 500 Hz, 0.006132 G2/Hz at 500 Hz. Overall level of 2.28 GRMS.


Regulatory



Electromagnetic Compatibility - 93/68/EEC; EN61326:1997 +A1 1998+A2:2000.

Certifications - UL 3111-1, CSA1010.1, ISO11469,EN61010-1, IEC 61010-1.

관련상품

등록된 상품이 없습니다.

상품문의

등록된 상품문의

상품문의가 없습니다.


회사명 티엠웨이  대표 안영상 주소 인천광역시 서구 보듬로 158 블루텍지식산업센터 공존동 624호
사업자 등록번호 279-38-00064 통신판매업신고번호 제 2022-인천서구-0752호 사업자정보확인
전화 070-7621-3327 팩스 02-6455-4427
개인정보 보호책임자 안영상
Copyright © 티엠웨이. All Rights Reserved.
