텍트로닉스의 전류 프로브는 다음과 같은 장점이 있습니다: 광범위한 AC/DC 및 AC 전용 전류 프로브 범위 uAs~2000A인 측정 정확도 최대 120MHz인 동급 최고의 대역폭 동급 최고의 전류 클램프 감도(최소 1mA) 타사 안전 인증(UL, CSA, ETL)을 받은 유일한 제품 나선 전압 등급을 받은 유일한 제품 텍트로닉스의 오실로스코프와 함께 사용할 경우 자동 판독 및 스케일 기능을 제공하므로 전압을 전류로 변환하거나 스케일을 수동으로 설정할 필요 없음

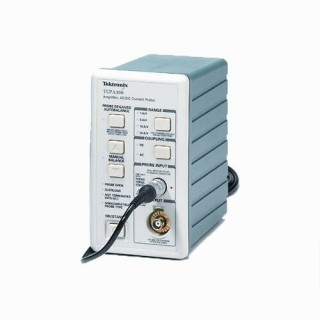

The Tektronix TCPA300 AC/DC Current Probe Amplifier, 100 MHz DC, when used with TCP312A, TCP305A, or TCP303 probes, provides a wide range of current measurement capability and spans the gap between low-level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30A, 50A, and 150A DC continuous (respectively).

Tektronix TCP300 and TCP400 Series AC/DC current measurement family is a highly advanced current measurement system for today's current measurement needs. When connected to Tektronix oscilloscopes with TEKPROBE Level II, TekConnect (with TCA-BNC), or TekVPI (with TPA-BNC) interfaces, current measurements and calculations are simple and easy.

The TCPA300 amplifier, when used with TCP312A, TCP305A, or TCP303 probes, provides a wide range of current measurement capability and spans the gap between low-level milliamp measurements to very high current levels. These three probes provide current measurement capabilities of 30 A, 50 A, and 150 A DC continuous. For even higher current levels, the TCPA400 amplifier with the TCP404XL current probe measures 500 A DC continuous and 750 A DC continuous, derated with duty cycle. Higher-frequency performance is available with the TCP312A w/TCPA300 providing ?100 MHz bandwidth and a maximum current of 30 A DC.

Product Features:

• NOTE: Requires Model TCP303, Model TCP305A, or Model TCP312A
• Automatic scaling and units
• Oscilloscope on-screen readout of magnitude and amps reduces measurement errors with no more hand calculations
• AC/DC input coupling
• Low insertion impedance reduces device under test loading
• Split-core construction allows easy circuit connection
• Status indicators provide visual operating status and notification of potential error conditions
• Degauss, probe open and overload not terminated into 50 O, noncompatible probe type
• Low DC drift and noise allows improved low-level current measurements
• 3rd party safety certification

Applications

• Development and analysis solutions for designers, installers, and service personnel in telecom, data comm, computer, and semiconductor power electronics environments for:
• Power supplies (switching and linear)
• Semiconductor devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs)
• Power inverters/converters
• Electronic ballasts
• Industrial/consumer electronics
• Mobile communications (phone, satellite, relay stations)
• Motor drives
• Transportation systems (electronic vehicles, electric trains, locomotives, avionics)
