• 탁월한 SWR을 통해 부정합 불확실성 감소
• US NIST(National Institute of Standards and Technology)에 의거한 정확한 교정 및 추적성
• EPM, EPM-P, P 시리즈 파워 미터, E1416A VXI 및 단종된 70100A 및 43X 파워 미터와 호환
• -70 ~ -20dBm 범위의 정확한 평균 전력 측정
• 50MHz 26.5GHz의 주파수 범위
• 다이오드 전력 감지 소자

• 탁월한 SWR을 통해 부정합 불확실성 감소
• US NIST(National Institute of Standards and Technology)에 대한 정확한 교정 및 추적성
• EPM, EPM-P, P 시리즈 파워 미터, E1416A VXI 및 단종된 70100A 및 43X 파워 미터와 호환
• -70 ~ -20dBm 범위의 정확한 평균 전력 측정
• 50MHz ~ 26.5GHz의 주파수 범위
• 다이오드 전력 감지 소자

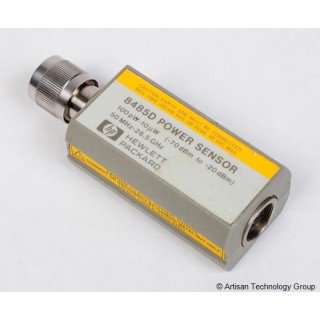

 The Agilent 8485D diode power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the 43x series power meters, and provides extraordinary accuracy and stability. The 8485D power sensor measures the average power over its entire -70 to -20 dBm dynamic range which gives you accurate readings even if your test signal is subjected to multitone environments, modulated carriers, or carriers with high harmonics.

• Accurate average power measurements over -70 to -20 dBm
• Frequency range 50 MHz to 26.5 GHz (8485D with Option 100)
• 3.5mm (male) connector
• Diode power sensing element
• Excellent SWR for reducing mismatch uncertainty
• Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) millimeter-wave sensor calibration
• Compatible with EPM (N1913A/14A, E4418B/19B), EPM-P (E4416A/17A) and P-series (N1911A/12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter

 The 8485D is a 10uW power sensor covering the range -70dBm to -20dBm, from 50MHz to 26.5GHz. APC 3.5mm connector.
