이동통신을 지원하는 다목적 Solution
최신의 디지탈 신호처리와 앞선 회로기술에의해, 이동통신측정에서 요구되는 Total
Level Accuracy와 High Sensitivity, 또한 광대역 변조신호의 정확한 측정등을 Compact한 Size에서 실현합니다.
또 무선랜등의 규격측정을 용이하게하는 기능과 밧데리구동, 고속Calibration등,
Field에서 사용하기에 적합한 다목적 스펙트럼 아날라이저입니다.

특징
■ 8GHz까지의 내장 Preamp 표준장착
■ 동급최고의 Level Accuracy
±0.8dB (10MHz to 3.1GHz)
±1.0dB (3.1GHz to 8 GHz)

■ 판정에 편리한 PASS/FAIL기능
W-CDMA, cdma2000등 규격측정에 필요한 설정조건을 간단하게
입력하여 실행할 수 있다.

■ 소형/경량
무게 : 5.6kg
크기 : W308 x H175 x D209mm

■ Warm-Up Time 5분이내
5분정도의 Warm-Up시간으로 ±0.8dB의 Level Accuracy를 확보

■ 고속Calibration 1분
■ 각종 Interface
USB, LAN, GP-IB등을 표준으로 제공

■ 3전원 방식
Battery / DC12V / AC

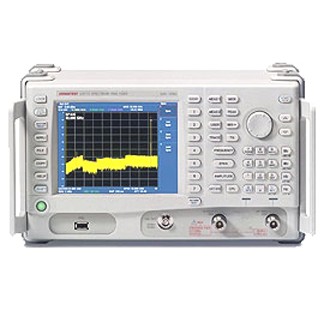

The Advantest U3751 is equally suitable for use on wireless communication device production lines and for field uses such as electromagnetic environment testing.

The Advantest U3751 is capable of measuring frequencies in the 9 KHz to 8 GHz band at twice the speed of its predecessor product. This performance was realized by speeding up the calculation of power consumption averages and the measurement of the occupied frequency band, both of which are essential to wave analysis. This enabled tremendous improvements in throughput and cost-efficiency during cellular phone production testing and on wireless LAN module production lines.

As a high-speed, portable spectrum analyzer, the U3751 offers best-in-class overall levels of accuracy (?0.8 dB/?1.0 dB). This was achieved by converting a major portion of the analytical processes (IF section) comprising the analog circuit to digital processes. Its highly reliable frequency measurements will contribute to improved yields on production lines as well as high-accuracy installation testing.
