중고 전류프로브 판매 텍트로닉스 A622 70Arms 요약정보 및 구매

제조사	TEKTRONIX
브랜드	텍트로닉스
모델명	A622
판매가격	전화문의
	(상기 금액은 부가세 별도입니다.)

상품 정보

상품정보
관련상품 0
상품문의 0

상품 상세설명

구입 및 기술문의 : 010-4221-0660

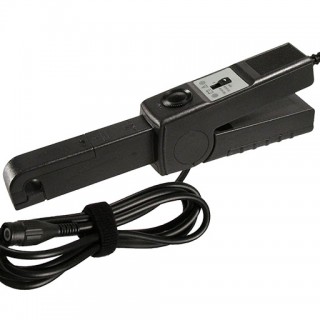

The A622 from Tektronix is a 100A AC/DC current probe. This high value current probe is specifically designed to support measurements with Tektronix oscilloscopes. A622 long nose style clamp on probe uses hall effect current sensor to provide voltage output to oscilloscopes. It has a BNC connector and can be used with shrouded banana plug adapter so it can also be used on digital multimeters. It is compatible with TPS2000, TDS1000B, TDS2000C and TDS3000C series oscilloscopes and DMM4020, DMM4040 and DMM4050 digital multimeters.

Frequency range from DC to 100KHz
Current probe range from 50mA to 100A
10mV/A and 100mV/A output
Maximum conductor diameter of 11.8mm (0.46inch)
BNC termination
Maximum bare wire voltage of 600V (CAT III)
UL3111-2-032, CSA1010.2.032, EN61010-2-032, IEC61010-2-032 approved

A622
- AC/DC – 100 kHz
- 50 mA to 100 A peak
- For DMMs and oscilloscopes

Applications

Motor drives
Inverters
Power supplies
Avionics

A622 100 Amp AC DC Current probe/BNC

This "long nose" style clamp-on probe uses a Hall Effect current sensor to provide a voltage output to oscilloscopes. It has a BNC connector and can be used with a shrouded banana plug adapter¹so it can also be used on digital multimeters, TekMeter, and oscilloscopes. The A622 can measure AC/DC currents from 50 mA to 100 A peak over a frequency range of DC to 100 kHz. It provides 10 mV or 100 mV output for each Amp measured.

Characteristic	A621	A622
Frequency range	5 Hz to 50 kHz	DC to 100 kHz
Maximum input current	2000 A peak	100 A peak
Output	1 mV/A, 10 mV/A, 100 mV/A	10 mV/A, 100 mV/A
Maximum conductor diameter	54 mm (2.13 in.)	11.8 mm (0.46 in.)
Termination	BNC¹	BNC¹
Maximum bare-wire voltage	600 V (CAT III)	600 V (CAT III)
Safety	UL3111-2-032, CSA1010.2.032, EN61010-2-032, IEC61010-2-032	UL3111-2-032, CSA1010.2.032, EN61010-2-032, IEC61010-2-032
