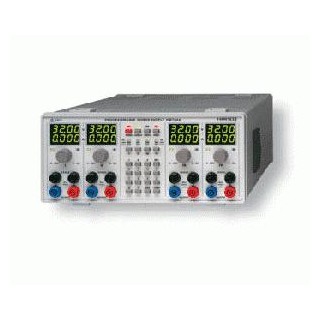

Quadruple High-Performance Power Supply Unit
| 4x 0…32V/0…3 A | |
| Up to 384W output power, pre-regulation with DC/DC converter ensures low dissipated power | |
| 4-digit displays for current and voltage | |
| Display resolution 10mV/1mA | |
| Parallel (up to 12A) and Series (up to 128V) operation | |
| Floating, overload and short-circuit proof outputs | |
| Low residual ripple due to linear inline regulators | |
| Tracking mode for all outputs | |
| Adjustable current limiting and electronic fuse for each output | |
| Possibility to link the fuses of several channels | |
| SENSE lines for each output for compensation of the voltage drop across the cables | |
| Galvanically isolated USB/RS-232 Interface, optional IEEE-488 in HM7044G |
