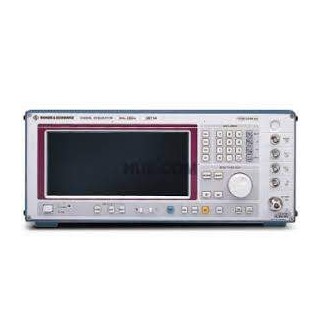

5kHz~3GHz RF시그젠, 로데슈바르즈 SMT03 RF Signal Generator 렌탈 요약정보 및 구매

RF 신호발생기

제조사	로데슈바르즈
브랜드	Rohde & Schwarz
품명	5kHz~3GHz RF시그젠
모델명	SMT 03
판매가격	전화문의
	(상기 금액은 부가세 별도입니다.)

상품 정보

상품정보
관련상품 0
상품문의 0

상품 기본설명

RF 신호발생기

상품 상세설명

렌탈 및 기술문의 : 010-4221-0660

Signal Generator R&S®SMT covers the complete range of conventional analog receiver measurements. It provides high signal quality, as well as outstanding level accuracy, a wide variety of modulation and signal generation modes, customized configuration, and great ease of operation. Features such as programmable RF, LF and level sweeps as well as the correction of external frequency response make the SMT an ideal source for EMS measurement

RF/LF/Level sweepEMS signal sourceProg lvl correctionLarge, backlit LCDMin RF leakageOutput Accuracy : 1.5dB

Ideal EMS signal source with specified frequency range from 5 kHz
AM, FM, φM, pulse modulation
FM DC with high carrier frequency accuracy
Broadband FM from DC to 8 MHz, broadband φM from DC to 2 MHz
Convenient RF/LF/level sweep
Programmable level correction (compensation of external frequency response)
VOR/ILS generator (option SM-B6)
- phase resolution 0.01°
- DDM resolution 0.0001
Stereo generator (option SM-B6) for measurements on FM sound broadcast transmitters and receivers
Minimum RF leakage due to special shielding measures
Large, backlit LCD for clear display of all relevant settings

Minimum Frequency	5 kHz
Maximum Frequency	3 GHz
Frequency Resolution	0.1 Hz
Frequency Switching Time	25 ms
Time base stability	0.000001 /yr
Minimum Output Power	-144 dBm
Maximum Output Power	16 dBm
Power Resolution	0.1 dB
Output Accuracy	1.5 dB
Output Impedance	50 ohms
Minimum Single-Side-Band Noise	-120 dBc/Hz
Maximum Single-Side-Band Noise	-109 dBc/Hz
Harmonics (noise)	-30 dBc
Non-harmonics (noise)	-74 dBc
Modulation	AM,FM,Phase,Pulse
External Modulation Inputs(Types)	Yes
Sweep Modes	Auto,External,Linear,Log,Manual
