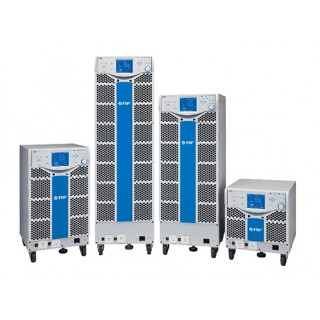

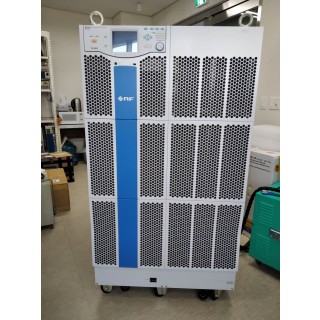

You can select the optimal power supply from a broad range of options, from single-phase 1.5 kVA to a maximum of three-phase 144 kVA.
The lineup includes single-phase, single-phase 3-wire, three-phase and multi-phase ( single-phase, single-phase 3-wire, or three-phase selectable) models.
A multi-phase system (single-phase 3-wire/three-phase) can be configured by connecting multiple units of the same single-phase model.
* Same model name with same ver. of firmware
1.5 kVA
3 kVA
4.5 kVA
6 kVA
7.5 kVA
9 kVA
10.5 kVA
12 kVA
18 kVA
24 kVA
36 kVA
42 kVA
48 kVA
Single-phase
—
Single-phase, 3-wire *1
—
—
—
—
—
—
—
—
—
Three-phase *2
—
—
—
—
—
—
—
—
—
—
—
Multi-phase *3
—
—
—
—
—
—
—
—
*1 Single-phase model ×2 units *2 Single-phase model ×3 units, 144kVA max. *3 1-phase/1-phase 3-wire/3-phase selectable
Output Characteristics
The DP series achieves stable output with low distortion, and operates stably with high-capacity capacitor loads. With a variety of output modes and a wide output range.
AC/DC modes: AC, AC + DC, DC
Output voltage/frequency
100 V range
200 V range
Resolution
AC
Output voltage
0 V to 155V
0 V to 310V
0.1 V
Frequency
AC: 40Hz to 550Hz AC+DC: 1Hz to 550Hz
0.01Hz
DC
Output voltage
-220 V to +220V
-440 V to +440V
0.1 V
Output voltage fluctuation: within ±0.15 V (75 V to150 V)/within ±0.30 V (150 V to 300 V) (DC, 45 Hz to 65 Hz if output current is varied from 0% to 100% of maximum current)
Maximum peak current: four times the maximum current (RMS value) (corresponds to a capacitor input rectified load with a crest factor of 4)
Waveform distortion rate: 0.5% max.
Measurement Functions
In addition to voltage, current and power, the DP series optionally supports measurement of load power factor, crest factor, and up to 40th-order harmonic current. In addition, the series supports measures to control CO2 by displaying CO2 emissions during operation.
Measurement Items
Voltage: RMS value, average DC value, peak value
Load power factor
Current: RMS value, average DC value, peak value, peak hold value
Crest factor
Power: active power, apparent power, reactive power
Sync frequency
Harmonic current: up to 40th order
CO2 emissions
Simple Operation
Panel operation is a breeze using the large, easy-to-read display. The design stresses improved ease-of-use and work efficiency for users, with features such as a function for selecting three decided measurement items and displaying them enlarged, and remote operation using a remote controller.
