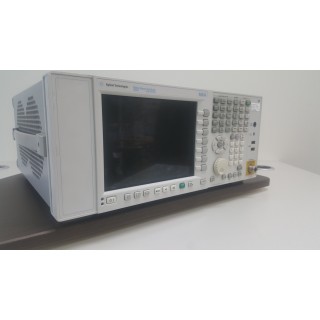

N9020A 중고스펙트럼분석기 판매/렌탈, MXA시리즈 Agilent(Keysight) Spectrum Analyzer N9020A, 10Hz~26.5GHz > RF장비(스펙트럼분석기외)

N9020A 중고스펙트럼분석기 판매/렌탈, MXA시리즈 Agilent(Keysight) Spectrum Analyzer N9020A, 10Hz~26.5GHz 요약정보 및 구매

중고, 임대용 스펙트럼분석기 26.5GHz

상품 선택옵션 0 개, 추가옵션 0 개

제품관련 문서 / 파일

중고, 임대용 스펙트럼분석기 26.5GHz

구매/렌탈 및 사양상담 : 010-4221-0660

10 Hz to 3.6, 8.4, 13.6, or 26.5 GHz
Internal preamplifier options up to 26.5 GHz
25 MHz (standard) or 40 MHz (optional) analysis bandwidth
30 to 300% faster than all other spectrum and signal analyzers
4 ms marker peak search
75 ms measurement/mode switching speed
0.23 db absolute amplitude accuracy
+20 dBm third order intercept (TOI)
-166 dBm displayed average noise level (DANL) with preamplifier
MXA supports over 25 measurement applications, covering cellular communication, wireless connectivity, digital video and general purpose

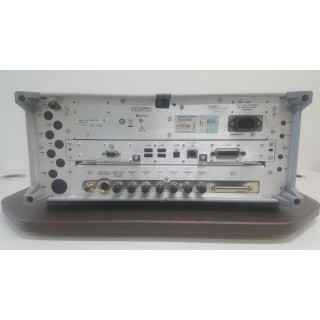

Modern connectivity: LXI-C certified, USB, 100based-T LAN, GPIB
Programming remote language compatibility with PSA, 8566/68, and 856x
Common X-Series user interface / Open Windows operating system

Frequency Range, Min-Max		10 Hz to 26.5 GHz
Analysis Bandwidth	Standard RF	25 MHz
	Optional RF	40, 85, 125, 160 MHz
	Optional baseband	25, 40 MHz
Overall amplitude accuracy (95%)		± 0.23 dB
Dynamic Range, Max Third Order at 1 GHz		116 dB
Displayed Average Noise Level (DANL)	@ 1 GHz	–166 dBm
Displayed Average Noise Level (DANL)	@ 4 GHz	–166 dBm
Third Order Intercept (TOI) @ 1 GHz		20 dBm
Phase noise @ 1 GHz	10 kHz offset	–114 dBc/Hz
Phase noise @ 1 GHz	1 kHz offset	–136 dBc/Hz
Standard Attenuator Range/Step		70 dB/2 dB
Resolution Bandwidth		1 Hz to 8 MHz
