| Temperature Range | |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -22 to 140°F (-30 to 60°C) |
| Temperature Coefficient | ±0.1% of reading/°C <18°C >28°C |
| Error | Intrinsic: Refers to the reference temperature range and is guaranteed for one year Operating: Refers to the operating temperature range and is guaranteed for one year |
| Climatic Class | C1 (IEC 654-1), 23 to 115°F (-5 to 45°C), 5 to 95% RH |
| Protective Type | IP56 for case, IP40 for battery door according to EN60529 |
| Safety | Protection by double and/or reinforced insulation maximum 50 V to earth. IEC61010-1: 300V CAT II, Pollution degree two |
| EMC (Emission Immunity) | IEC61326-1: Portable |
| Quality System | Developed, designed, and manufactured according to DIN ISO 9001 |
| External Voltage | V external, maximum = 24 V (dc, ac <400 Hz), measurement inhibited for higher values |
| V Ext Rejection | >120 dB (16²⁄3, 50, 60, 400 Hz) |
| Measuring Time | Typical six seconds |
| Maximum Overload | 250 V rms (pertains to misuse) |
| Auxiliary Power | 6 x 1.5 V Alkaline (type AA LR6) |
| Battery Life Span | Typical >3000 measurements |
| RA 3-Pole Ground Resistance Measurement (IEC 1557-5) | |
| Switch Position | RA 3-pole |
| Resolution | 0.001 to 10 Ω |
| Measuring Range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(2% rdg + 3 d) |
| Operating Error | ±(5% rdg + 3 d) |
| Measuring Principle: Current/Voltage Measurement | |
| Measuring Voltage | Vm = 48 V ac |
| Short-Circuit Current | >50 mA |
| Measure Frequency | 128 Hz |
| Probe Resistance (RS) | Maximum 100 kΩ |
| Auxiliary Earth Electrode Resistance (RH) | Maximum 100 kΩ |
| Additional Error from RH and RS | RH[kΩ]RS[kΩ]/RA[Ω]0.2% |
| RA 4-Pole Ground Resistance Measurement (IEC 1557-5) | |
| Switch Position | RA 4-pole |
| Resolution | 0.001 to 10 Ω |
| Measuring Range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(2% rdg + 3 d) |
| Operating Error | ±(5% rdg + 3 d) |
| Measuring Principle: Current/Voltage Measurement | |
| Measuring Voltage | Vm = 48 V ac |
| Short-Circuit Current | >50 mA |
| Measure Frequency | 128 Hz |
| Probe Resistance (RS + RES) | Maximum 100 kΩ |
| Auxiliary Earth Electrode Resistance (RH) | Maximum 100 kΩ |
| Additional Error from RH and RS | RH[kΩ]RS[kΩ]/RA[Ω]0.2% |
| Monitoring of RS and RH with error indicator. Automatic range selection. | |
| RA 3-Pole Selective Ground Resistance Measurement with Current Clamp (RA with Clamp) | |
| Switch Position | RA 3-pole with clamp |
| Resolution | 0.001 to 10 Ω |
| Measuring Range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(7% rdg + 3 d) |
| Operating Error | ±(10% rdg + 5 d) |
| Measuring Principle: Current/Voltage Measurement (with External Current Clamp) | |
| Measuring Voltage | Vm = 48 V ac |
| Short-Circuit Current | >50 mA |
| Measure Frequency | 128 Hz |
| Probe Resistance (RS) | Maximum 100 kΩ |
| Auxiliary Earth Electrode Resistance (RH) | Maximum 100 kΩ |
| Monitoring of RS and RH with error indicator. Automatic range selection. Measurement is not performed if the current through the current clamp is too low. | |
| RA 4-Pole Selective Ground Resistance Measurement with Current Clamp (RA with Clamp) | |
| Switch Position | RA 4-pole with clamp |
| Resolution | 0.001 to 10 Ω |
| Measuring Range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(7% rdg + 3 d) |
| Operating Error | ±(10% rdg + 5 d) |
| Measuring Principle: Current/Voltage Measurement (with External Current Clamp) | |
| Measuring Voltage | Vm = 48 V ac |
| Short-Circuit Current | >50 mA |
| Measure Frequency | 128 Hz |
| Probe Resistance (RS) | Maximum 100 kΩ |
| Auxiliary Earth Electrode Resistance (RH) | Maximum 100 kΩ |
| Monitoring of RS and RH with error indicator. Automatic range selection. Measurement is not performed if the current through the current clamp is too low. | |
| Stakeless Ground Loop Measurement (2 Clamps) | |
| Switch Position | RA 4-pole 2 clamps |
| Resolution | 0.001 to 10 Ω |
| Measuring Range | 0.020 Ω to 19.99 kΩ |
| Accuracy | ±(7% rdg + 3 d) |
| Operating Error | ±(10% rdg + 5 d) |
| Measuring Principle: Stakeless Measurement of Resistance in Closed Loops Using Two Current Transformers | |
| Measuring Voltage | Vm = 48 V ac |
| Measure Frequency | 128 Hz |
| Noise Current (IEXT) | Maximum IEXT = 10 A (ac) (RA <20 Ω) |
| General Specifications | |
| Display | 1999 Digit LCD: Display with special symbols, digit height 25 mm, fluorescent backlight |
| User Interface | Instant measurement through TURN and START one button concept. The only operating elements are rotary switch and START button |
| Robust, Water and Dust Resistant | Instrument is designed for tough environmental conditions (rubber protective cover, IP56) |
| Memory | Internal memory storage up to 1500 records accessible via USB port |
| Dimensions | 9.75 x 5.25 x 7.35" (250 x 133 x 187 mm) |
| Weight | 2.43 lbs (1.1 kg) including batteries 16.8 lbs (7.6 kg) included accessories and batteries in carrying case |

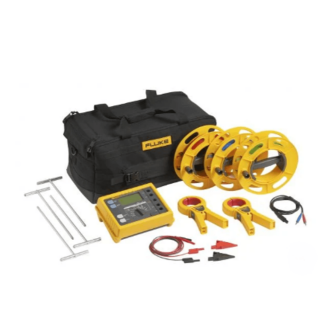

Simpler, faster earth ground tests than ever before. With internal memory storage of up to 1500 records, users can have a faster setup made easy with the new color-coded wires that help eliminate mistakes.
