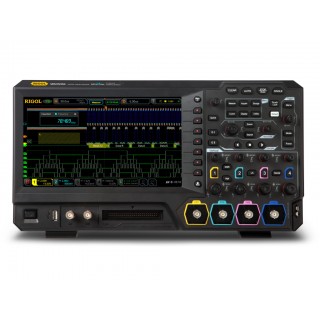

Rigol MSO5354 - Four Channel, 350 MHz Digital / Mixed Signal Oscilloscope
Four channel, 350 MHz digital / mixed signal oscilloscope
Up to 8 GSa/s real-time sample rate
100 Mpts memory depth, optional memory depth up to 200 Mpts
16 digital channels included - requires optional PLA2216 logic probe to operate
Integrates seven instruments into one
The Rigol MSO5354 is a four-channel, 350 MHz digital/mixed-signal oscilloscope with a real-time sample rate of up to 8 GSa/s. Easily upgraded, it features a 100 Mpts memory depth which is upgradable to 200 Mpts via software key code. It also includes 16 digital channels as a standard feature - simply add the optional PLA2216 logic probe to operate.
The Rigol MSO5000 series digital oscilloscope is a high-performance instrument based on Rigol’s UltraVision II technology. With a real-time sample rate of up to 8 GSa/s and extremely high memory depth, the MSO5000 seamlessly integrates 7 instruments into one - oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator and much more. The MSO5000 also features a 9 inch, capacitive multi touch screen with 256 level intensity grading and color persistence.
The MSO5000 Series compares strongly with competitive models from Tektronix, Keysight, R&S, and Siglent on price while providing superior performance specifications, rich advanced analysis features, and next-generation UI. The MSO5000 Series provides some of the strongest value available in the basic embedded market.
The innovative physical appearance and thin design of the instrument not only make the LCD display prominent, but also make it portable and easy to operate.
Super High Sample Bandwidth Ratio
Bandwidth and the sample rate are two key technical specifications that engineers take priority in choosing the digital oscilloscope. Bandwidth determines the maximum frequency that the oscilloscope can acquire. The higher the bandwidth of the oscilloscope, the better the oscilloscope can keep the steep, fast, abundant harmonics components and energies of the signal under test. Whereas the sample rate determines the time interval of the sample points, that is, determines the refinement of the outlined waveforms. The MSO5000 series provides a maximum of 8 GSa/s real-time sample rate and 23X sample rate/bandwidth ratio for 350 MHz bandwidth, which makes itself far ahead of the same level products.
While maintaining the super high sample rate of 8 GSa/s, the MSO5000 series also has a maximum of 200 Mpts memory depth, enabling itself to capture more events in one acquisition. This provides sufficient time for users to observe while retaining the waveform details to a large extent. Thus, users can not only get the detailed information about the waveforms, but also can take an overview of the waveforms.
7 into 1 Integrated Digital Oscilloscope
In today's integrated design field, a comprehensive digital oscilloscope has become a useful tool for design engineers. The MSO5000 series digital oscilloscope combines 7 independent instruments into 1, including a digital oscilloscope, 16-channel logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, high-precision frequency counter and totalizer, and protocol analyzer. The MSO5000 series offers you a flexible and economical solution to fit your particular application.
1. Digital Oscilloscope
Four bandwidth models: 350 MHz, 200 MHz, 100 MHz, and 70 MHz; with the bandwidth upgradeable
Up to 8 GSa/s real-time sample rate
Up to 200 Mpts memory depth (option)
Maximum waveform capture rate of 500,000 wfms/s
350 MHz passive voltage probe for each channel (standard)
2. Logic Analyzer
Standard 16 digital channels - requires optional PLA2216 logic probe to be activated
25 Mpts memory depth for the waveforms of all the digital channels
Up to 1 GSa/s sample rate
Hardware real-time waveform recording and playback functions supported
Mixed (analog channel and digital channel) trigger and decode supported
Convenient digital channel grouping and group operation
3. Spectrum Analyzer
Standard configuration of enhanced FFT, real-time operation for max. 1 Mpts waveform data
Max. frequency range: oscilloscope analog bandwidth
Up to 4 groups of operations can be displayed at the same time
Independent FFT color persistence view supported
Up to 15 peaks available for the peak search function; event table available to be exported
4. Arbitrary Waveform Generator (Option)
Standard configuration of 2 waveforms output channels for the hardware, and only AWG option is required to be ordered
13 pre-defined waveforms
Up to 25 MHz frequency
Up to 200 MSa/s sample rate
Advanced modulation, sweep, and burst signal output supported
5. Digital Voltmeter
3-digit DC/AC, RMS/AC+DC RMS voltage measurement
Sound an alarm for reaching or exceeding the limits
Display the latest measurement results in the form of a diagram, and display the extrema over the last 3 seconds
6. High-precision Frequency Counter and Totalizer
Optional 3 to 6-digit high-precision frequency counter
Support the statistics on the maximum and minimum values of the frequency
48-bit totalizer (standard)
7. Protocol Analyzer (Option)
Support RS232/UART, I2C, SPI, CAN, LIN, I2S, FlexRay, and MIL-STD-1553 serial bus
Remote Wireless Control Software
The Web Control software is a standard configuration for the MSO5000 series. You can use the software to migrate the instrument control and waveform analysis to the PC, and then click the mouse to operate easily.
You only need to input the IP address of the oscilloscope into the address bar of the Web browser to open the Web Control software. The display of the waveform interface and instrument control in the software are consistent with that in the MSO5000 series. You can use the mouse to tap the keys or knobs in the Web Control interface to complete the waveform control, measurement, and analysis. In the Web Control interface, the basic information of the instrument is displayed, and you can also upload or download the files of the oscilloscope, control with the SCPI commands, set or modify the network status.
