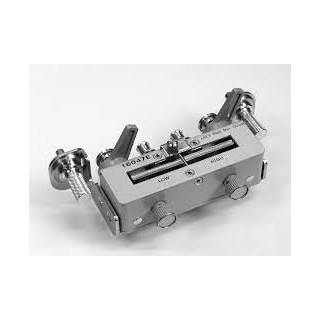

The 16047E is a Test Fixture connecting to the impedance analyser. The test fixture to the test connectors on the front panel of the impedance analyser by gradually coupling the four BNC connectors and fastening screws of the fixture with the test connectors and accessory mounting holes of the instrument until they come to complete contact. The test fixture is used to measure parts with leads. When used with the impedance analyser, the fixture provides highly accurate measurement with wide frequency range up to 120MHz. Also it gains mechanical stability and a prolonged life when it is secured to the impedance analyser with its fastening screws.

Additional Features:

• Axial and Radial Test Fixture, 110 MHz
• Terminal Connector: 4-Terminal Pair, BNC
• DUT Connection: 2-Terminal
• Frequency: DC to 110 MHz
• Maximum Voltage: ±42 V peak max.(AC+DC)
• Operating Temperature: 0°C to 55°C
• Dimensions (approx.): 135 (W) x 40 (H) x 65 (D) [mm]
• Weight (approx.): 200 g
• Applicable Instruments: 4263B, 4268A, 4279A, 4284A, 4285A, 4288A, 4294A, (4192A, 4194A, 4263A, 4278A)

The Agilent 16047E test fixture is designed for impedance evaluation of lead type devices up to 110 MHz. The 16047E is a test fixture used to measure parts with leads. When used with the Impedance Analyzer, the fixture provides highly accurate measurement with wide frequency range up to 120 MHz. Also it gains mechanical stability and a prolonged life when it is secured to the Impedance Analyzer with its fastening screws.
