• ● Easy-to-Use and Accurate AC/DC Current Measurements
• ● DC to >50 MHz Bandwidth
• ● Core Jaw Diameter of 5 mm (0.2 in.)
• ● Accurately Measures Current Levels as Low as 10 mA per Division
• ● High Accuracy with Typically Less than 1% DC Gain Error
• ● Split-core Construction allows Easy Circuit Connection
• ● Low Noise and DC Drift
• ● TCP0020
  • ○ 20 ARMS Maximum Current Capability
  • ○ 100 A Peak Pulse Current Capability
  • ○ Connects Directly to Oscilloscopes with the TekVPI™ Probe Interface
  • ○ Provides Automatic Units Scaling and Readout on the Oscilloscope Display
  • ○ One-button Degauss and AutoZero Control for Ease of Use
  • ○ Easy Access to Scope-displayed Probe Menu for Probe Setup Control and Operating Status Information
  • ○ Remote Control Capability through TekVPI Oscilloscope
• TCP2020
  • ○ 20 ARMS Maximum Current Capability
  • ○ 100 A Peak Pulse Current Capability
  • ○ 10 mA/mV Sensitivity
  • ○ BNC Output Connects to Most Oscilloscopes and Other Measurement Equipment (>100 kΩ Termination Required)
  • ○ Degauss Button and Thumbwheel for DC Offset Adjustment
  • ○ Powered by an AC Adapter

• ● Power Supplies
• ● Semiconductor Devices
• ● Power Inverter/Converters
• ● Electronic Ballasts
• ● Industrial/Consumer Electronics
• ● Mobile Communications
• ● Motor Drives
• ● Transportation Systems

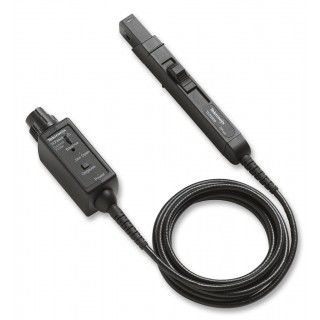

Tektronix TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.

These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP2020 provides a maximum 20 ARMS measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today's challenging current measurement needs.

Includes: Instruction Manual (English) (071-3002-xx), Probe Ground Lead – 6 in. length (196-3120-xx), Nylon Carrying Case (016-1952-xx), AC Adapter.
