요꼬가와 WT1800, WT3000용 YOKOGAWA 751574 전류센서 (600Apk) 렌탈서비스, 중고판매 요약정보 및 구매

RENTAL SERVICE 상품

제조사 요꼬가와
브랜드 YOKOGAWA

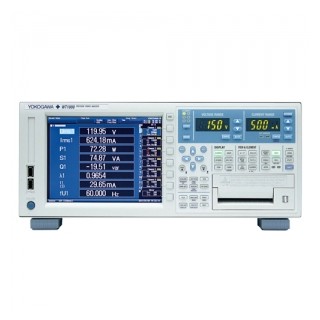

품명 YOKOGAWA WT1800 High Performance Power Analyzer
모델명 WT1800
판매가격 전화문의
(상기 금액은 부가세 별도입니다.)

제품관련 문서 / 파일

상품 정보

상품 기본설명

RENTAL SERVICE 상품

상품 상세설명



구입 렌트 및 기술문의 : 010-4221-0660





■ 전류 : AC/DC 100㎂ ~ 55A
■ 전압 : AC/DC 1000V
■ 결선방식 : 단상~3P4W
■ 주파수대 : DC, 0.1¢㎐ ~ 1㎒
■ 전력정확도 : 0.1%
■ 입력채널수 : 1 ~ 6


특징

■ 전압과 전류 주파수 대역 5MHz(-3dB, Typical) : 이전 모델보다 5배 증가
 전압과 전류 주파수(5MHz)가 이전의 5배 넓어졌으며, 빠른 스윗칭 신호들을 조금더 정확하게 잡아낼 수 있다.
■ 낮은 Power-Factor 에러율 0.1%로 감소 : 이전 모델 2/3
■ 기본 정확도: ±0.1%
■ 직접 입력 가능한 넓은 전압과 전류영역
■ WT1800 Direct input Voltage/Current Specification
 - Voltage : 1.5V ~ 1000V (12 ranges)
 - Current : 10mA ~ 5A (9 ranges) / 1A ~ 50A
■ 0.1Hz의 낮은 속도 신호 전원측정과 최대 50ms의 고속 데이터 수집
■ Dual 고조파 측정 기능(옵션)
■ 2개 채널의 외부신호입력은 전력측정과 아날로그 신호 데이터 측정
 (모터 평가 기능과 결합한 옵션으로 가능)
■ 전기적인 각도 측정 지원. 모터 평가기능은 A상, B상과 Z상 입력을 따른다.
 (외부신호입력과 결합한 옵션으로 가능)


기본 사양

■ 측정 전압 레인지 : (crest factor 3) 1.5/3/6/10/15/30/60/100/150/300/600/1000V (DC, 0.5Hz ~ 1MHz)
■ 측정 전류 입력 레인지 (직접 입력, crest factor 3)
 - 5A 입력 엘리먼트 : 10/20/50/100/200/500 mA, 1/2/5 A (DC, 0.5Hz ~ 1MHz)
 - 50A 입력 엘리먼트 : 1/2/5/10/20/50/A (DC, 0.5Hz ~ 100kHz)
 - 외장 센서 입력(5A와 50A 입력 엘리먼트와 동일)
 - 옵션 : 50/100/250/500 mV, 1/2.5/5/10 V (DC, 0.5Hz ~ 500kHz)
■ 기본정확도 : (45 Hz ≤ f ≤ 66Hz)
 - 전압/전류/파워 : ± (0.1% of rdg + 0.05% of rng)
■ 파워팩터의 효율 (cos ¢ = 0) : ± 0.15% of rng 추가
■ 외형사이즈 : 약 426(W) x 177(H) x 459(D)mm
■ 중량 : 약 15kg (6개 입력 엘레먼트 포함)





The WT1800 offers innovative measurement functions for testing product efficiency and the design of inverters, motor drives, lighting systems, uninterpretable power supplies, aircraft power systems, transformer testing, and other power conversion devices. Although the WT1800 is still available, the newer WT1800E offers higher accuracy power measurement.



Voltage and current frequency bandwidth 5 MHz (-3 dB, typical)





WT1800 Features1Faster switching frequencies increasingly require measurements in a wider range. The WT1800 provides a voltage and current frequency bandwidth (5MHz) 5-fold wider than the previous measurement range and is capable of more correctly capturing fast switching signals.



Reduction of low power-factor error to 0.1% of apparent power (2/3 of previous model)





WT1800 Features2 1A power-factor error is one of the important elements to ensure high-accuracy measurements even at a low power factor. The WT1800 has achieved a power-factor error (0.1%) that is 2/3 of the previous model, in addition to a high basic power accuracy of ±0.1%.



Wide voltage and current range allowing direct input





WT1800 Features3Direct input of measurement signals makes it possible to measure very small current that can hardly be measured with a current sensor. The WT1800 provides a direct input voltage range from 1.5 V to 1000 V (12 ranges) and a direct input current range from 10 mA to 5 A (9 ranges) or from 1 A to 50 A (6 ranges).



0.1 Hz low-speed signal power measurement and max. 50 ms high-speed data collection





WT1800 Features4The frequency lower limit has been reduced to 0.1 Hz from the previous 0.5 Hz (5-fold lower than the previous model) to meet the requirement for power measurements at a low speed. Furthermore, high-speed data collection at a data update rate of up to 50 ms has been inherited. In addition to normal measurement data, up to the 500th order harmonic data can be measured and saved simultaneously. The data update rate can be selected from nine options from 50 ms to 20 s.
* Harmonic measurement at the 50 ms data update rate is possible up to the 100th order.



Particular voltage and current range selectable






WT1800 Features5Wide voltage and current input ranges have the advantage of extending the measurement application range. However, the downside is that the response time of the auto range tends to slow down. A range configuration function solves this problem. Since only the selected range (effective measurement range) can be used, the range can be changed up or down more quickly.

* Comparison with Yokogawa's previous model WT1600

*1: Applicable to a general-purpose high-precision three-phase power analyzer as of February 2011 (according to Yokogawa's survey).

Support for Energy Conservation Technologies and Sustainable Energy Development





WT1800 Dual

Dual Harmonic Measurement
The perspective of the efficient use of energy is boosting demand for inverters to convert 50Hz or 60 Hz AC power to DC power, grid connection controllers to control reverse power flow occurring due to excess power, and battery chargers/dischargers. The WT1800 is capable of simultaneously measuring the harmonic distortion of the input and output current of these devices. Challenging the common wisdom that "harmonic measurement is limited to a single line," the WT1800 is capable of performing two-line simultaneous harmonic measurements. The WT1800 is also capable of measuring up to the 500th order harmonic even at high fundamental frequencies such as a 400 Hz frequency.
