Product Features:

• Output Voltage: 0 - 80V
• Output Current: 0 - 60A
• Max Power: 1200W
• Input Voltage: 115/230VAC, 47 Hz - 63 Hz
• Store and Recall up to 100 instrument settings
• Analog interface with control and monitoring functions
• Remote sense
• Overvoltage protection (OVP), overpower protection (OPP), over temperature protection (OTP), and key-lock function

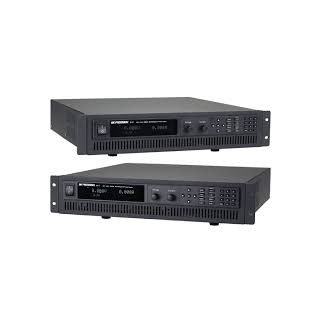

The BK Precision 9115 Programmable Multi-Range DC Power Supply, 80V/60A, 1200W automatically recalculates voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits. This model provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. The 9115 comes with built-in OVP (overvoltage protection), OTP (overtemperature protection), and OLP (overload protection) circuitry. These protections help prevent serious damage to equipment in case of power supply failure.

 Any 9115 Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits.

For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands.

The 9115-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2 standards that can simulate common test conditions for electrical and electronic devices installed in automobiles.

• Multi-ranging operation (output up to max power rating within maximum voltage and current rating)
• Compact, high density, 1U rackmount form factor (2U for 9117)
• High programming and readback resolution
• Adjustable voltage rise and fall times
• Sequence programming (internal list mode for 9115, 9115-AT, and 9116)
• Store and recall up to 100 instrument settings
• Standard USB (USBTMC-compliant), RS-232, GPIB, RS-485, and LAN (9117 only) interfaces supporting SCPI commands for remote control
• Analog interface with control and monitoring functions
• Remote sense
• Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function
• Softpanel for remote control, test sequence generation, and data logging. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators
