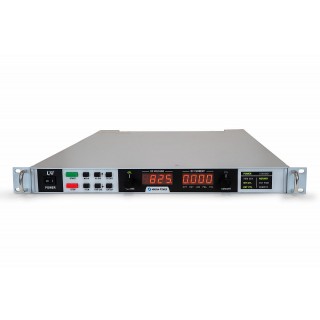

중고 10kW DC파워서플라이 판매 Magna Power, XR80-125, 80V/125A 요약정보 및 구매

제조사	Magna power
브랜드	Magna power
품명	DC Power Supply
모델명	XR80-125
판매가격	전화문의
	(상기 금액은 부가세 별도입니다.)

상품 정보

상품정보
관련상품 0
상품문의 0

상품 상세설명

구입 및 기술문의 : 010-4221-0660

XR Series

2U rack-mount
2 kW, 4 kW, 6 kW, 8 kW, 10 kW power levels
5 Vdc to 10000 Vdc output voltage
0.2 Adc to 600 Adc output current
SCPI Remote Programming API
High Accuracy Measurements
Programmable Protection Limits
NI LabVIEW™ and IVI Driver

There are 136 different models in the XR Series spanning power levels: 2 kW, 4 kW, 6 kW, 8 kW, 10 kW.

To determine the appropriate model:

Select the desired Max Voltage (Vdc) from the left-most column.
Select the desired Max Current (Adc) from the same row that contains your desired Max Voltage.
Construct your model number according to the model ordering guide.

	2 kW	4 kW	6 kW	8 kW	10 kW
Max Voltage (Vdc)	Max Current (Adc)					Ripple (mVrms)	Efficiency
5	375	600	N/A	N/A	N/A	50	80%
10	200	375	600	N/A	N/A	50	84%
16	125	250	375	500	600	50	84%
20	100	200	300	375	500	45	87%
25	80	160	240	320	400	45	88%
32	62	124	186	250	310	40	88%
40	50	100	150	200	250	40	88%
50	40	80	120	160	200	50	90%
60	33	66	100	133	166	60	91%
80	25	50	75	100	125	60	91%
100	20	40	60	80	100	60	91%
125	16	32	48	64	80	100	91%
160	12	24	36	50	60	120	91%
200	10	20	30	40	50	125	92%
250	8	16	24	32	40	130	92%
300	6.6	13.2	19.8	26.4	33.3	160	92%
375	5.3	10.6	15.9	21.3	26.5	170	92%
400	5	10	15	20	25	180	92%
500	4	8	12	16	20	220	93%
600	3.3	6.6	9.9	13.3	16.5	250	93%
800	2.5	5	7.5	10	12.5	300	93%
1000	2	4	6	8	10	350	93%
1250	1.6	3.2	4.8	6.4	8	375	93%
1500	1.3	2.6	4.0	5.3	6.6	400	93%
2000	1	2	3	4	5	450	93%
3000	0.6	1.3	2	2.6	3.3	Contact	93%
4000	0.5	1	1.5	2	N/A	6500	93%
6000	0.33	0.66	1	1.33	N/A	7500	93%
8000	0.25	0.5	0.75	1	N/A	8500	93%
10000	0.2	0.4	0.6	0.8	N/A	9500	93%

AC Input Voltage (Vac)	Input Current Per Phase (Aac)
208/240 Vac, 1Φ	17	N/A	N/A	N/A	N/A
208/240 Vac, 3Φ	8	15	22	29	35
380/415 Vac, 3Φ	5	9	12	16	19
440/480 Vac, 3Φ	4	8	11	14	17

PHYSICAL SPECIFICATIONS

Racking Standard

EIA-310

Rear Support Rails

Included

Size and Weight

2 kW Models

2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
45 lbs (20.41 kg)

Size and Weight

4 kW Models

2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
47 lbs (21.32 kg)

Size and Weight

6 kW Models

2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
48 lbs (21.77 kg)

Size and Weight

8 kW Models

2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
48 lbs (21.77 kg)

Size and Weight

10 kW Models

2U
3.50" H x 19" W x 24" D (8.89 x 48.26 x 60.96 cm)
48 lbs (21.77 kg)

REGULATORY SPECIFICATIONS

EMC

Complies with 2014/30/EU (EMC Directive)
CISPR 22 / EN 55022 Class A

Safety

Complies with EN61010-1 and 2014/35/EU (Low Voltage Directive)

CE Mark

Yes

RoHS Compliant

Yes

ENVIRONMENTAL SPECIFICATIONS

Ambient Operating Temperature

0°C to 50°C

Storage Temperature

-25°C to +85°C

Humidity

Relative humidity up to 95% non-condensing

Temperature Coefficient

0.04%/°C of maximum output voltage
0.06%/°C of maximum output current

Air Flow

Side air inlet, rear exhaust

PROGRAMMING INTERFACE SPECIFICATIONS

Front Panel Programming

Stepless aluminum rotary knobs and keypad

Computer Interface

RS232, D-sub DB-9, female (Standard)
LXI TCP/IP Ethernet RJ45 (Option +LXI)
IEEE-488 GPIB (Option +GPIB)

External User I/O Port

Analog and Digital Programming

37-pin D-sub DB-37, female
Referenced to Earth ground; isolated from power supply output
See User Manual for pin layout

Remote Sense Limits (Wired)

Available for models ≤ 1000 Vdc

3% maximum voltage drop from output to load

ACCURACY SPECIFICATIONS

Voltage Programming Accuracy

± 0.075% of max rated voltage

Over Voltage Trip Programming Accuracy

± 0.075% of max rated voltage

Current Programming Accuracy

± 0.075% of max rated current

Over Current Trip Programming Accuracy

± 0.075% of max rated current

Voltage Readback Accuracy

± 0.2% of max rated voltage

Current Readback Accuracy

± 0.2% of max rated current

EXTERNAL USER I/O SPECIFICATIONS

Analog Programming and Monitoring Levels

0-10 Vdc

Analog Output Impedances

Voltage output monitoring: 100 Ω
Current output monitoring: 100 Ω
+10V reference: 1 Ω

Digital Programming and Monitoring Limits

Input: 0 to 5 Vdc, 10 kΩ input impedance
Output: 0 to 5 Vdc, 5 mA drive capacity

AC INPUT SPECIFICATIONS

1Φ AC Input Voltage

1Φ, 2-wire + ground, Available on 2 kW models only

208 Vac (operating range 187 - 229 Vac)
240 Vac (operating range 216 - 264 Vac)

3Φ AC Input Voltage

3Φ, 3-wire + ground; Available on all models

208 Vac (operating range 187 to 229 Vac)
240 Vac (operating range 216 to 264 Vac)
380 Vac (operating range 342 to 440 Vac)
415 Vac (operating range 373 to 456 Vac)
440 Vac (operating range 396 to 484 Vac)
480 Vac (operating range 432 to 528 Vac)

Input Frequency

50 Hz to 400 Hz

Power Factor

>0.92 at max power; models with 3Φ AC input
0.70 at max power; models with 1Φ AC input

AC Input Isolation

±2500 Vac, maximum input voltage to ground

DC OUTPUT SPECIFICATIONS

Voltage Ripple

Model specific. Refer to chart of available models.

Line Regulation

Voltage mode: ± 0.004% of full scale
Current mode: ± 0.02% of full scale

Load Regulation

Voltage mode: ± 0.01% of full scale
Current mode: ± 0.04% of full scale

Load Transient Response

2 ms to recover within ±1% of regulated output with a 50% to 100% or 100% to 50% step load change

Stability

± 0.10% for 8 hrs. after 30 min. warm-up

Efficiency

80% to 93%
Model specific. Refer to chart of available models.

Maximum Slew Rate

Standard Models

100 ms for an output voltage change from 0 to 63%
100 ms for an output current change from 0 to 63%

Maximum Slew Rate

Models with High Slew Rate Output (+HS) Option

4 ms for an output voltage change from 0 to 63%
8 ms for an output current change from 0 to 63%

Bandwidth

Standard Models

3 Hz with remote analog voltage programming
2 Hz with remote analog current programming

Bandwidth

Models with High Slew Rate Output (+HS) Option

60 Hz with remote analog voltage programming
45 Hz with remote analog current programming

DC Output Isolation

Models Rated ≤1000 Vdc

±1000 Vdc, maximum output voltage to ground

DC Output Isolation

Models Rated >1000 Vdc and ≤3000 Vdc

±(1500 Vdc + Vo/2), max output voltage to ground, where Vo is the max rated voltage

DC Output Isolation

Models Rated >3000 Vdc

No output isolation, specify positive or negative output polarity at time of order

The XR Series was designed from the ground up for high reliability and industry leading 2U (3.5” height) rack-mount programmable power levels, at: 2 kW, 4 kW, 6 kW, 8 kW, and 10 kW. The XR Series features the largest voltage range in Magna-Power's product offering, from 5 Vdc to 10,000 Vdc, all utilizing the company's signature current-fed power processing to deliver robust power conversion. In addition, high accuracy programming and monitoring levels allow confidence in power supply measurements, eliminating the need for external power meters.
