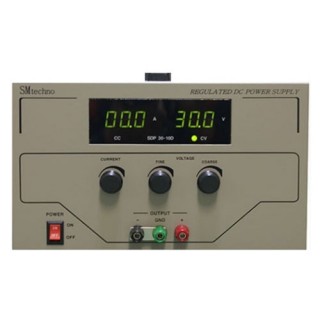

저가형 / 가변형 직류전원공급기
- 300W/600W 가변 Single 채널
- C.V(정전압) / C.C(정전류) MODE OPERATION
- 3 1/2 DIGIT DIGITAL DISPLAY
- HIGH STABILTY & LOW COST
- LOW RIPPLE AND NOISE
Model | SDP30-10D | SDP30-20D |
> DC Output |
|
|
Output voltage range (V) | 0~30V | 0~30V |
Output current range (A) | 0~10A | 0~20A |
Rated output power (W) | 300W | 600W |
FIXED Voltage Current | - | - |
> Voltage regulation |
|
|
Line regulation | 0.1%+2mVp-p | 0.1%+3mVp-p |
Load regulation | 0.1% + 2 mVp-p | 0.1% + 3 mVp-p |
Ripple /noise | <3mVp-p | <4mVp-p |
> Current regulation |
|
|
Line regulation | 0.1% + 5mAp-p | 0.1% + 6mAp-p |
Load regulation | 0.1%+3mAp-p | 0.1%+4mAp-p |
> Display |
|
|
Voltage display | Max 31.5V (FND) | Max 31.5V (FND) |
Current display | Max 10.50A (FND) | Max 21.00A (FND) |
constant voltage/current operation | CV LED on/ CC LED on | CV LED on/ CC LED on |
> Environmental request |
|
|
Operating temperature / humidity | 0 to 40 ℃ / 30 to 80 % RH | 0 to 40 ℃ / 30 to 80 % RH |
Stocking temperature / humidity | -20 to 70 ℃ / 20 to 80 % RH | -20 to 70 ℃ / 20 to 80 % RH |
To-GND voltage | ± 250 VDC | ± 250 VDC |
Cooling method | air cooling with fan motor | air cooling with fan motor |
> Power source |
|
|
Input voltage | AC 220 50/60 Hz | AC 220 50/60 Hz |
> Dimensions / Weight |
|
|
Dimensions | 263(W)x150(H)x320(D)mm | 300(W)x180(H)x430(D)mm |
Weight (approx.) | 13.5kg | 20kg |
