중고 로고스키 커런트 프로브 판매 PEM CWT 06B mini > 기타 계측기

제조사	Rogowski
브랜드	Rogowski
모델명	CWT 06B mini
판매가격	전화문의
	(상기 금액은 부가세 별도입니다.)

구입 및 기술문의 : 010-4221-0660

Overview

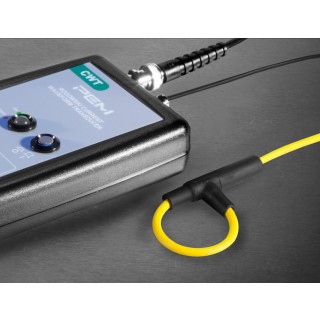

The CWT Mini and MiniHF are state-of-the art, clip-around, AC Rogowski current probes with a small form factor and virtually zero insertion impedance.

The New CWT MiniHF combines an innovative screened Rogowski coil providing excellent immunity to interference from fast local dV/dt transients or large 50/60Hz voltages and an extended 30MHz (-3dB) high frequency bandwidth for 100mm coils. The coil has a wide operating temperature from -40°C to +125°C and is available with 5kV peak insulation, 4.5mm thickness.

The CWT Mini features both improved high frequency and low frequency performance. The CWT Mini is available with a coil thickness of 3.5mm (2kV peak) or 4.5mm max (5kV peak).

The CWT range is ideal for power electronic applications, such as monitoring semiconductor switching waveforms or for measurements in electrically noisy environments. The easy-to-use thin, flexible, clip-around coil accurately replicates fast switching current waveforms be they sinusoidal, quasi sinusoidal or pulsed.

Standards and Approvals

CE marked
Designed and Tested to EN 61326-1:2013
Designed and Tested to EN 61010-1 Third Edition
PEM Ltd is an ISO9001:2015 registered company
Patents Pending

Performance

Peak current	30A peak to 120kA peak
Output	±6.0V peak corresponding to 'Peak Current' into ≥100kΩ ±3.0V peak corresponding to 'Peak Current' into 50Ω
High Frequency Bandwidth (-3dB)	30MHz (100mm coil), 23MHz (200mm coil); CWT MiniHF 20MHz (100mm coil); 15MHz (200mm coil); CWT Mini
Low Frequency Bandwidth (-3dB)	Varies with model type
Accuracy (typ.)	Calibrated to ±0.2% with conductor central in the Rogowski loop
	Typical variation with conductor position ±2.0% of reading
Operating temperature range	0℃ to +40℃ (Integrator electronics)
	–40℃ to +125℃ (CWT MiniHF -Coil and cable) –20℃ to +100℃ (CWT Mini -Coil and cable)
Coil Lengths	100 or 200mm (custom lengths available)
Peak coil insulation (coil thickness)	2kV peak (3.5mm thickness) *CWT Mini Only 5kV peak (4.5mm thickness)
Cable Length (coil to integrator)	1m, 2.5m or 4m (custom lengths available)
Power Supply	Option ‘B’ Battery 4 x AA (1.5V standard alkali batteries) Plus - 2.1mm socket for 12V (±10%) DC input
	Option ‘R’ Rechargeable Battery 4 x AA (1.2V NiMH batteries) with on-board trickle charge circuitry. Plus - 2.1mm socket for 12V (±10%) DC input

Features

Traceable calibration (certificate included)
Thin, clip-around, Rogowski coil for easy insertion into circuits with restricted access
Maximum coil thickness 3.5mm (2kV) or 4.5mm (5kV)
Non-intrusive: Loads the circuit under test by only a few pH’s
No magnetic materials ensures excellent linearity < 0.05% reading
Galvanically isolated measurement

Applications

The CWT has been supplied to major electrical engineering companies and leading research institutions around the world for the past 20 years. This versatile instrument has been used for a wide variety of applications, some examples include:

Semiconductor Switching Waveforms

The CWT can be used for a wide variety of electronic measurements such as switching loss in power semiconductors or checking in-circuit inductance is not over stressing an IGBT or MOSFET.

The CWT is non-intrusive injecting only a few pH into the primary circuit, wide-bandwidth greater than 10MHz, has a predictable known measurement delay, and is thin and clip-around making it easy to insert into even difficult to reach parts of the circuit.

The new CWT MiniHF features an innovative screened coil making it the perfect choice for measurements on SiC devices which have faster rise times and larger blocking voltages.

Large AC Currents in Generators, Motor Drives and Power Supplies

Unlike other forms of current measurement the size of the sense coil (the Rogowski coil) is independent of the size of the measured current. Thus for large currents the size of the Rogowski coil can be chosen to suit the conductor diameter and transducer does not require an expensive and bulky magnetic former. Over a 1000A range there really is no better alternative to the Rogowski coil.

Pulsed Power Applications

PEM’s CWT Rogowski coils have been used:

to monitor current in the kicker magnets in a large particle accelerator.
in laser power supplies
in a ‘Superconducting Fault Current Limiter’ (Cryogenic Application)

Measuring Small AC Currents in the Presence of Large DC Currents (e.g. capacitor ripple)

Rogowski current transducers do not measure the DC component of a current. However unlike a CT or hall effect device they contain no magnetic materials so are unaffected by the DC current. Therefore it is possible to use a small, flexible, Rogowski coil to measure a small AC current in the presence of a large DC current whereas a sensor based on a magnetic principle would be expensive and bulky to prevent saturation effects. One such common application is measuring the ripple current in capacitors where the main current is DC or slow time varying.

Other applications include:

Power converter development and diagnostics
High frequency Sinusoidal applications – such as Induction Heating
rf currents
