| MEMORY HiCORDER MR8875 | |
| 입력유닛 수 | 최대 4유닛 |
| 채널수 | [아날로그 16ch(MR8902 사용시 최대 60ch)+기본 로직 8ch+펄스 2ch ※ 아날로그 유닛의 채널간과 본체간은 절연, CAN유닛의 포트 및 표준로직 단자, 펄스입력단자는 모두 본체와 GND공통 |
| 측정레인지 (20div 풀 스케일) | 5 mV-10 V/div, 11레인지(MR8901 사용시), 500 mV~50 V/div, 7레인지의 (MR8905 사용시), 분해능: 레인지의 1/1250 |
| 최대 입력전압 | 단자간 : DC150 V, 대지간:AC, DC 100 V(모두 MR8901 사용시) |
| 주파수 특성 | DC-100 kHz(-3dB, MR8901 사용시) |
| 시간축 | 200 us~5 min/div, 21레인지, 외부 샘플링 가능, 샘플링 주기 : 레인지의 1/100 |
| 측정 기능 | 하이스피드(고속 기록), 실시간 채널간 연산, FFT연산 등 |
| 스토리지 메모리 용량 | 총 32 M WORD(증설 불가, 입력 유닛별 8 MW 단위) ※입력유닛 내에서 채널수에 따른 메모리 사용량은 분배 가능 |
| 메모리 용량 | SD카드 슬롯, x1, USB2.0 메모리x1 |
| 기록지 | 216 mm x 30 m, 롤형 감열기록지, 기록속도: 50 mm/s |
| 표시부 | 8.4형 SVGA-TFT 컬러액정(800 x 600도트) |
| 통신 인터페이스 | [LAN] 100BASE-TX(DHCP, DNS지원, FTP서버/클라이언트, WEB서버, 이메일 송신, 커맨드 제어) [USB] USB2.0 규격, 시리즈 미니-B소켓x1(통신 커맨드에 의한 설정과 측정, SD메모리 카드 내의 파일을 PC로 전송), 시리즈 A단자 x2(USB메모리, USB마우스/ 키보드, GPS유닛 Z5005 접속) ※ Z5005는 Ver 2.11 이상 |
| 전원 | 1) AC어댑터 Z1002:AC100~240 V(50/60 Hz), 56 VA 2)배터리팩 Z1003: DC 7.2 V, 36 VA ※AC 어댑터와 병용시에는 어댑터 우선, AC어댑터에 의한 충전 3ch/ 연속 사용시간 1h(백라이트 ON시) DC전원입력 : DC10~28 V, 56 VA (접속 코드는 특별주문으로 판매합니다.) |
| 차수 및 질량 | 298W x 224H x 84 Dmm, 2.4 kg(입력유닛/ 배터리 미포함) 참고값 : 3.47 kg(MR8901 x4, 배터리 포함) |
| 부속품 | 사용설명서x1, 측정가이드x1, AC어댑터 Z1002 x1, 보호시트 x1, USB케이블 x1, 스트랩x1, 어플리케이션 디스크(파형뷰어 Wv/통신 커맨드표, CAN Editor) x1 |

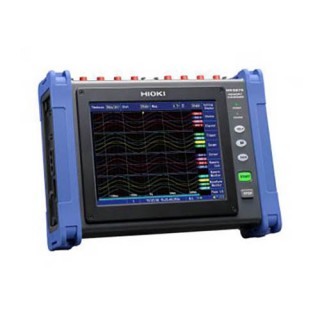

Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to complete isolation between channels and from each channel to the ground. The MR8875 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as onboard vehicle analysis, current consumption testing of portable devices, and measuring the voltage waveforms of superconducting materials and contacts.
Key Features
• 1000V input and instantaneous DC or RMS waveform measurement with new Analog Unit MR8905
• Multi-channel logger capable of thermocouple temperature measurement up to 60 ch at 10 msec intervals
• Measure multiple channels simultaneously despite handheld portable design
• Max. 2 μsec high-speed simultaneous logging for all input channels
• Save directly to the SD Card in real time for uninterrupted long-term logging
• 16-bit high-resolution measurement of voltage, temperature, distortion and CAN signals
• FFT calculation, waveform calculation functions for advanced analysis
• Intuitive touch screen for optimal operability
• Tough against vibrations and extreme temperatures, with strengthened body ideal for in-vehicle testing and road tests
• 3 different power supplies
| Number of input units | Up to 4 slots |
|---|---|
| Number of channels | Max. 16 analog channels (Max. 60 channels when using the MR8902) + standard 8 logic channels + 2 pulse channels Note: For analog units, channels are isolated from each other and from the MR8875’s GND. For CAN unit ports or standard logic terminals or standard pulse terminals, all channels have common GND. |
| Measurement ranges (20 div full-scale) | 5 mV to 10 V/div , 11 ranges (when using the MR8901), 500 mV to 50 V/div , 7 ranges (when using the MR8905), resolution : 1/1250 of range |
| Max. rated voltage | Between terminals: 150 V DC Between terminal to earth: 100 V AC, DC (when using the MR8901) |
| Frequency characteristics | DC to 100 kHz (-3 dB, when using the MR8901) |
| Time axis | 200 µs to 5 min/div, 21 ranges, sampling period: 1/100 of range, External sampling possible |
| Max. sampling rate | [When using MR8901] 500 kS/s (2 μs period, all channels simultaneously) [When using MR8902] 10 ms (all input channels are scanned at high speed during every recording interval) [When using MR8903] 200 kS/s (5 μs period, all channels simultaneously) External sampling: 200 kS/s (5 μs period) |
| Measurement functions | High-speed function (high speed recording), Real-time calculation between channels, FFT calculation, or other functions |
| Storage memory capacity | Total 32 M-words (memory expansion: N/A, 8 MW each input unit) Note: 1 word = 2 bytes, therefore 32 Mega-words = 64 Mega-bytes. Note: Storage memory can be allocated depending on the number of channels used at each input unit |
| Removable storage | SD card slot ×1, USB 2.0 memory |
| Display | Touch-panel operation 8.4-inch SVGA-TFT color LCD (800 × 600 dots) |
| Communication interfaces | LAN: 100BASE-TX (DHCP, DNS supported, FTP server/ client, WEB server, send E-mail, command control) USB: USB 2.0 compliant, series mini-B receptacle ×1 (setting / measure with communication command, or file transfer SD card to PC), series A receptacle ×2 (USB memory, USB mouse/ key-board) |
| Power supply | 1) AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 56 VA 2) Battery pack Z1003: 7.2 V DC, 36 VA, continuous operation time: 1 hour with back light ON (AC adapter has priority when used in combination with battery pack), Charges while installed in the MR8875, recharging time: 3 hours 3) External DC Power: 10 to 28 V DC, 56 VA, (please contact your HIOKI distributor for connection cord) |
| Dimensions and mass | 298 mm (11.73 in)W × 224 mm (8.82 in)H × 84 mm (3.31 in)D, 2.4 kg (84.7 oz), (excluding input units and the Battery pack Z1003) Reference data: 3.47 kg/ 122.4 oz (including the MR8901 ×4 units and the Battery pack Z1003) |
| Accessories | Instruction manual ×1, Measurement guide ×1, AC adapter Z1002 ×1, Protection sheet ×1, USB cable ×1, Shoulder strap ×1, Application disk (Wave viewer Wv, communication commands table, CAN Editor) ×1 |
