FEATURES

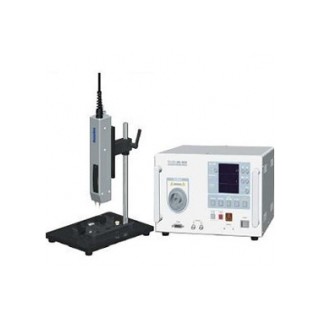

The ESS-6000 series ESD simulators are testers specifically designed to carry out ESD sensitivity testing of semiconductor devices to standards such as MIL-STD-883, EIAJ ED-4701 and others. Included are the Human Body Model (HBM) and Machine Model (MM) probes.
As a DUT interface, select either Free Type Probe Stand where virtually any package type can be connected by means of a pair of miniature test leads or Semi-automatic Precision Type Probe Stand providing automatic and precise pin-to-pin feeding with a minimum 0.01mm resolution.
COMPLIANT STANDARDS
| Human Body Model (HBM) | Machine Model (MM) |
| AEC-Q100-002-Rev.E Aug.2013 | AEC-Q100-003-REV-E Jul.2003 |
| ESDA ANSI/EOS/ESD-STM5.1-2001 | ESDA ANSI/ESD STM5.2-1999 |
| IEC 61340-3-1Ed.2.0 2006 | IEC 61340-3-2 Ed.2.0-2006 |
| IEC 60749-26 Ed.3.0 2013 | IEC 60749-27 Ed.2.0 2006 |
| JEDEC JESD22-A114F Dec 2008 | JEDEC JESD22-A115C Nov.2010 |
| JEITA EIAJ ED-4701/300 Aug.2001 Test Method304 | JEITA EIAJ ED-4701/300 Aug.2001 |
| MIL-STD-883J Method 3015.9 Jun.2013 |
SPECIFICATIONS
Main Unit (Models: ESS-6002/ESS-6008)
Item | Specifications | |
| ESS-6002 | ESS-6008 | |
| Output voltage | 10V ~2.0kV ±10% (1V step) | 100V ~ 8.0 kV±10% (10V step) |
| Polarity | Positive & Negative | |
| Discharge Repetition | 0.3~99s (0.1s step to 10S, 1s step over 10S) | |
| Number of discharge | 1~99 or continuous | |
| Automatic output voltage ramping | Available | |
| Dimensions and weight | (W)340 x (H)199 x (D)300 mm (projection excluded) | |
| Weight | Approx. 6 kgs | |
Free Type probe Stand <Model:18-00075A>
| Item | Specifications |
| Dimensions and weight (stand) | (W)200 x (H)330 x (D)290 mm Approx. 1.5 kgs |
| Dimensions and weight (test fixture) | (W)100 x (H)27 x (D) 180 mm (projection excluded) Approx. 0.2 kgs. |
| Vise gap | 110 mm |
| Other | V-shape block (Polyoxynethylene) included |
Semi-automatic Precision Type Probe Stand <Model:18-00076A>
The precision mechanism offers a 0.01 mm movement resolution for the probe electrodes (hot and ground pins), enabling ESD pulses to be exactly applied to each target pins in turn.
| Item | Specifications |
| Dimensions and weight (stand) | (W)250 x (H)400 x (D) 300 mm Approx. 7 kgs. |
| Maximum DUT size | 40 mm x 40 cm, minimum lead pitch: 0.4 mm |
| X axis | Manual, by dovetail groove and feed screw mechanism, Distance: 20mm |
| Y axis | Motor drive (maximum speed 13 mm/s) by stepping motor & ball screw mechanism Distance: 40mm, Y resolution: 0.01 mm |
| Θ axis | Manual, 360° |
| Z axis | Manual, 20 mm, hand press (spring built-in) |
| Origin adjustment | Manual |
