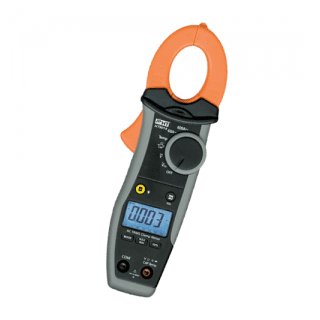

HT9019 AC / DC TRMS 프로페셔널 클램프 미터 최대 1000A 요약정보 및 구매

상품 정보

구입 및 기술문의 : 010-4221-0660

ELECTRICAL SPECIFICATIONS
DC Voltage (Autorange)	600.0mV - 1000V
AC Voltage TRMS (Autorange)	6.000V - 1000V
Resistance and Continuity test (Autorange)	600.0Ω - 60.00MΩ
AC TRMS Current	60.00A - 1000A

GENERAL SPECIFICATIONS
Mechanical characteristics
Dimensions (L x W x H)	252 x 88 x 44mm ; 10 x 3 x 2 in
Weight (including battery)	402g (14 ounces
Max conductor size	45mm (2 in)
Supply
Battery type	1 battery 9V NEDA 1604 IEC 6F22 JIS 006P
Battery life	about 200 hours.
Auto power OFF	after 15 minutes of idleness (not disabled)
Display
Characteristics	4 LCD (max 6000 counts), decimal point, unit symbol indication, bargraph and backlight
Sample rate	2 times/sec
Conversion mode	TRMS
Climatic conditions
Reference temperature	18°C ÷ 28°C (65°F ÷ 83°F)
Operating temperature	5 ÷ 40 °C (41°F ÷ 104°F)
Operating humidity	<80%RH
Storage temperature	-20 ÷ 60 °C (-4°F ÷ 140°F)
Storage humidity	<80%RH
Reference Standards
Comply with	IEC/EN 61010-1
Insulation	double insulation
Pollution	Level 2
For inside use, max height	2000m
Installation category	CAT IV 600V, CAT III 1000V to ground

Clamp Meters/Clamp Meters Template
Type	Standard Style
True RMS	Yes
Maximum Current AC	1000 A
Minimum Current AC	60 mA
Maximum Voltage AC	1000 V
Minimum Voltage AC	6 V (6000 mV)
Maximum Voltage DC	1000 V
Minimum Voltage DC	600 mV
Basic Voltage Accuracy	±(1.0%rdg + 3dgt)
Digits Display	4
Counts	6000 .
Resolution AC Volts	1 V
Resolution DC Volts	1 V
Resolution AC Current	1 A
Maximum Conductor Size	45 IN
Auto Ranging/Manual	Auto Ranging
Auto Power Off	Yes
Peak Hold	Yes
Min/Max	Yes
Dual Display	No
Analog Bargraph on Display	No
Backlight	Yes
Resistance	Yes
Continuity	Yes
CAT Rating	III
CAT Voltage	1,000 V, 600 V
Test Equipment General Attributes
Unique Features	TRMS measurement AC current up to 1000A DC/AC voltage up to 1000V
Safety Approval	CE
Product Weight	420 GRAMS (0.926 LBS)
Product Height	51 MM (2.01 IN)
Product Length	252 MM (9.92 IN)
HTS/Schedule B Number	90303330
ECCN Number	8033772792028
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China
