Ideal for solar power generation systems, UPS and battery testing
Large current measuring applications in the fields of electric and hybrid electric vehicles
Applications in solar power generation, battery charge and discharge, and measuring the secondary side of inverters
For observing waveforms in combination with oscilloscopes or Hioki Memory HiCorders (use with the CT6590)
Description

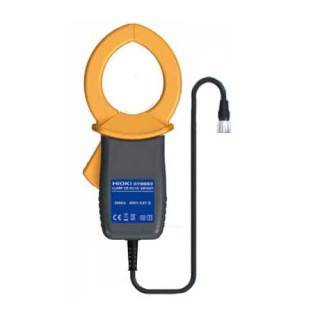

Hioki CT9693-90 2000A AC/DC Clamp Sensor with Power Supply
Hioki AC/DC clamp sensors are best-in-class devices for use with power meters, Memory HiCorders and high performance oscilloscopes. The CT9693 and CT9693-90 with sensor unit attachment is a DC to 15 kHz/2000A sensor, ideal for capturing current signals from solar power generation systems, UPS and batteries.
Note:To use the CT9691/ CT9692/ CT9693 sensor with the Hioki PW3198 Power Quality Analyzer or the Hioki Memory HiCorder series, it must be connected and powered via the Sensor Unit CT6590.
Note:The CT9691/ CT9692/ CT9693 sensor may also be used with the Clamp on AC/DC HiTester 3290/ 3290-10 (without the Sensor Unit CT6590).
Hioki CT9693 Specifications
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
Rated input current
2000 A AC/DC
Max. allowable input
Continuous 2000 Arms
Bandwidth
DC to 15 kHz (-3dB)
Max. rated voltage to earth
600 V AC/DC CAT III
Power consumption
50 mVA
Core diameter
φ 55 mm (2.17 in)
Dimensions and mass
62 mm (2.44 in) W × 196 mm (7.72 in) H × 35 mm (1.38 in) D, 500 g (17.6 oz)
Cord length
2 m (6.56 ft)
