HT Instruments HT9019 AC/DC TRMS Professional Clamp Meter up to 1000A
AC true rms clamp meter 1000A, 6000 points - CAT IV HT9019 professional clamp is designed for AC TRMS current measurement up to 1000A, and DC/AC voltage for achieve safety CAT IV 1000V according to IEC/EN61010-1 safety standard. The model have a large LCD 4 digit display (6000counts), with backlight and bargraph to more easy reading in critical environments. The model perform also resistance and continuity test measurements. The AutopowerOFF feature is also available for the meter in order to preserve it’s internal battery charge.

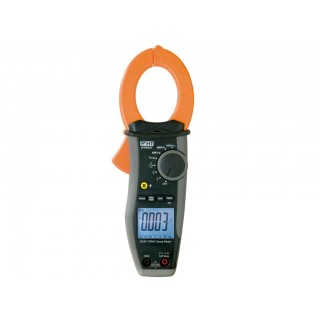

LEGEND:
Inductive clamp jaw
LED for AC voltage detection
Jaw trigger
Function selector
HOLD/key
PK/RELkey
LCD display
MODEkey
Hz%key
MAX/MINkey
CAPHz%Tempinput jack
COMinput jack
Battery cover
Manufacturer Specs
HT Instruments HT9019 Technical Specifications
Accuracy is indicated as [% rdg + number of dgt) x resolution]. It is referred to 18°C ÷ 28°C with 75%RH
ELECTRICAL SPECIFICATIONS
DC Voltage (Autorange)
600.0mV - 1000V
AC Voltage TRMS (Autorange)
6.000V - 1000V
Resistance and Continuity test (Autorange)
600.0Ω - 60.00MΩ
AC TRMS Current
60.00A - 1000A
GENERAL SPECIFICATIONS
Mechanical characteristics
Dimensions (L x W x H)
252 x 88 x 44mm ; 10 x 3 x 2 in
Weight (including battery)
402g (14 ounces
Max conductor size
45mm (2 in)
Supply
Battery type
1 battery 9V NEDA 1604 IEC 6F22 JIS 006P
Battery life
about 200 hours.
Auto power OFF
after 15 minutes of idleness (not disabled)
Display
Characteristics
4 LCD (max 6000 counts), decimal point, unit symbol indication, bargraph and backlight
key
CAPHz%Temp
