중고 4채널 전자부하 판매 PRODIGIT 3300C, 3310D 요약정보 및 구매

제조사	프로디지트
브랜드	PRODIGIT
품명	전자부하
모델명	3300C, 3310D
판매가격	전화문의
	(상기 금액은 부가세 별도입니다.)

상품 정보

상품정보
관련상품 0
상품문의 0

상품 상세설명

구입 및 기술문의 : 010-4221-0660

"3300C(1200W Mainframe)-4CH / 3301A(1200W Mainframe)-4CH / 3302C(300W Mainframe)-1CH
300W급의 Module을 장착하여 구성이 됩니다.
특징:
-3310D 시리즈 장착 가능.
-3320 시리즈 장착 가능.
-3250 시리즈 장착 가능.
-3330A 시리즈 장착 가능.
-150 Store/Recall Memory for 3300C/3302C
-External Recall Key."

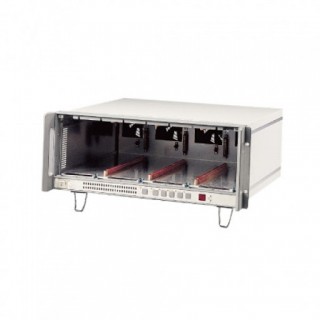

3300C is a 4 Channels 1200W Mainframe which accepts up to four 3310D / 3250A / 3330A series Load Module.

Accept 3310D Series DC Electronic Load Module
Accept 3250A Series AC / DC Electronic Load Module
Accept 3330A Series Dual Dynamic Load Module
Flexible Load Module configuration
include 150 states Store/Recall Memory
External Recall key

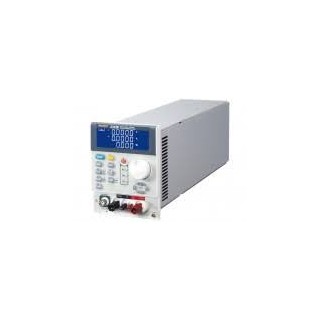

3310D series Module are used with the 3302C single mainframe and 3300C 4ch Mainframes.
Each 3310D Series Module has its own control and display panel, CC/CR/CV/CP/Dynamic modes, 150 Store/Recall memory which provides load set-up more efficiently.
SHORT time setting and SHORT_VH, SHORT_VL setting function
Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is and external signal input so that load can have a simulated Arbitrary Waveform.
OCP, OPP test function operated by both mainframe and module that will be more effective and accuracy on OCP, OPP testing.
Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display "+" or "-" is selectable and 150 sets larger memory is much advance features than 3310C series.

MODEL		3310D		3311D		3312D		3314D		3315D
MAX POWER		150W		300W		300W		300W		75W
MAX CURRENT		30A		60A		10A		10A		15A
OPERATOR VOLTAGE		60V		60V		250V		500V		60V
OVER POWER PROTECTION		--- 157.5W		≒ 315W		≒ 315W		≒ 315W		--- 78.75W
OVER CURRENT PROTECTION		--- 31.5A		≒ 63A		≒ 10.5A		≒ 10.5A		≒ 15.75A
OVER VOLTAGE PROTECTION		--- 63A		≒ 63V		≒ 262.5V		≒ 525V		≒ 63V
OVER TEMP. PROTECTION		-85℃
CC MODE	RANGE	0 - 3A	0 - 30A	0 - 6A	0 - 60A	0 - 1A	0 - 10A	0 - 1A	0 - 10A	0 - 1.5A	0 - 15A
	RESOLUTION	0.8mA	0.8mA	1.6mA	1.6mA	0.268mA	0.268mA	0.268mA	0.268mA	0.4mA	0.4mA
	ACCURACY	± 0.2% OF(SETTING + RANGE)
CR MODE	RANGE	2-7.5KΩ	0.1067-2Ω	1-3.75KΩ	0.0533-1Ω	25-18.75KΩ	1.333-25Ω	50-18.75KΩ	2.666-50Ω	4-15KΩ	0.213-4Ω
	RESOLUTION	0.133mS	0.533mΩ	0.266mS	0.266m	0.053mS	6.666mΩ	0.005mS	13.33mΩ	66.66uS	1.066mΩ
	ACCURACY	± 0.2% OF(SETTING + RANGE)
CV MODE	RANGE	0 - 60A		0 - 60A		0 - 250A		0 - 500A		0 - 60A
	RESOLUTION	0.016V		0.016V		0.0667V		0.133V		0.015V
	ACCURACY	± 0.1% OF(SETTING + RANGE)
CP MODE	RANGE	0 - 150W		0 - 300W		0 - 300W		0 - 300W		0 - 75W
	RESOLUTION	0.04W		0.08W		0.08W		0.08W		0.02W
	ACCURACY	± 0.5 OF(SETTING + RANGE)
DYNAMIC OPERATION	THIGH & TLOW	50uSec TO 9.999Sec
	SLEW RATE	2.0-125 mA/uSec	20mA-1.2 5A/uSec	4-250 mA/uSec	40mA-2.5A/uSec	0.8-50 mA/uSec	8mA-50A/uSec	0.8-50 mA/uSec	8mA-500A/uSec	1.0-62.5 mA/uSec	10mA-0.625A/uSec
	ACCURACY	± (10% OF SETTING) ±10uS ±(10% OF SETTING) ±10uS
VOLTAGE READBACK(AMETER)	RANGE	15.0V	60.0V	15.0V	60.0V	30.0V	250.0V	=199.99V	=500.0V	15.0V	60.0V
	RESOLUTION	0.001V	0.002V	0.001V	0.002V	0.001V	0.01V	0.01V	0.1V	0.001V	0.02V
	ACCURACY	=0.05% OF(SETTING + RANGE)
CURRENT READBACK(AMETER)	RANGE	3.0A	30.0A	6.0A	60A	1.2A	12.0A	=10.00A		1.5A	15.0A
	RESOLUTION	0.001A	0.01A	0.001A	0.01A	0.0001A	0.001A	1mA		0.0001A	0.001A
	ACCURACY	± 0.2% OF(SETTING + RANGE)
CURRENT MONITOR OUTPUT		FULL SCALE 10V (ISOLATED WITH LOAD MODULE)
CURRENT PROGRAME INPUT		FULL SCALE 10V (ISOLATED WITH OTHER LOAD MODULE)
PROGRAMMABLE SHORT		BUILT - IN
LOAD ON VOLTAGE		0.1-25V		0.1-25V		0.2-50V		0.4-100V		0.1-25V
LOAD OFF VOLTAGE		0-25V		0-25V		0-50V		0-100V		0-25V
MAX. SHORT RESISTANCE		0.0115Ω		0.0057Ω		0.0625Ω		0.43Ω		0.017Ω
MAX. SHORT CURRENT		30A		60A		10A		10A		15A
