성능

측정 어플리케이션 소프트웨어

• 위상 노이즈, 노이즈 피겨, GSM/EDGE, cdmaOne 등 케이블 장애 위치, 위상 노이즈, CATV 서비스 측정 기능
• Power Suite 원버튼 RF 파워 측정 포함 케이블 장애 위치, 위상 노이즈, CATV 서비스 측정 기능

특징

• 빠른 배송과 저렴한 가격
• 한 스위프에서 최대 32개의 불연속 스팬을 위한 세그먼트 스위프
• 실험실용 성능 제공. 견고하고 휴대 가능하여 현장에서도 사용가능
• 5분 예열로 측정 정확도 보장

내용

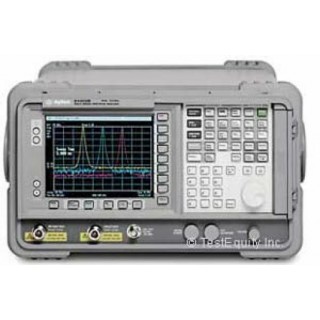

The E4405B is a 13.2 GHz Spectrum Analyzer from Agilent. A spectrum analyzer measures the power of spectrums of known and unknown signals. Spectrum analyzers collect information such as the magnitude of an input signal compared to its frequency. As a frequency analyzer, spectrum analyzers’ main use is to document and analyze electrical input signals as well as spectral compositions of other signals.

Additional Features:

• Frequency range: 9 kHz to 13.2 GHz
• Rugged and portable for lab grade performance in the field
• One-millisecond RF sweep time, 45 measurements per second
• RMS, peak, neg peak, quasi-peak detectors
• ± 0.4 dB overall amplitude accuracy
• -166 dBm sensitivity, with internal preamp, +12.5 dBm TOI
• Variable sweep (trace points) from 2 to 8192
• Segmented sweep for up to 32 discontinuous spans in one sweep

• Remotely view and control the ESA over the Internet
• 8590-Series Programming Code Compatibility
• Modulation Analysis Measurement Personality
• Multiformat RF power measurement suite
• Bluetooth standards compliant measurement personality
• Optional ACPR dynamic range extention
• GSM and CDMAOne standards compliant measurement personalities
• Fault location, phase noise, CATV Service measurement personalities
• Rugged and portable for lab grade performance in the field
• One-millisecond RF sweep time, 40 measurements per second
• ± 1 dB overall amplitude accuracy
• Optional 10 Hz digital-resolution bandwidth filter and preamplifier
• -151 dBm sensitivity, with internal preamp, +12.5 dBm TOI
• Variable sweep (trace points) from 2 to 8192
• Segmented sweep for up to 32 discontinuous spans in one sweep
• Free IntuiLink PC software for screen and data transfer

The Agilent ESA-E Series is our mid-performance spectrum analyzer solution for the future. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required. The products' selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.
