TDS2000C 오실로스코프 시리즈는 초소형 디자인으로 경제적인 가격으로 더 많은 성능을 제공합니다. 텍트로닉스의 독자적인 기술인 디지털 실시간 샘플링 아키텍처를 채택하여 미세한 신호의 세부 정보까지 정확하게 확인할 수 있습니다. 모든 모델에 USB 연결, 16가지 자동 측정, 리미트 테스트, 내장된 도움말 메뉴, 영구 보증** 등이 표준 기능으로 제공됩니다.

Product Features:

• 200 MHz Bandwidth Models
• 2-channel Model
• Up to 2GS/s Sample Rate on All Channels
• 2.5k point Record Length on All Channels
• Advanced Triggers including Pulse Width Trigger and Line-selectable Video Trigger

Ease of Use Features

• 16 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis:
  • Take your most important measurements at the press of a button; Quickly & Accurately
  • 5 new measurements added: RMS measurement, Cursor RMS measurement, Duty cycle measurement, Delay measurement, Phase measurement
  • Measure active channel or math waveform
  • On-screen cursors help make quick time and voltage readings
• Built-in Waveform Limit Testing:
  • Monitor signal changes and output pass or fail results
  • Quick and easy template definition
  • Record multiple failed waveforms to USB memory device in waveform and/or screen image formats
  • Source can be any input channel or math waveform
  • User specified stop condition of elapsed time, waveforms or violations
• Automated, Extended Data Logging Feature:
  • Save triggered waveforms together with time stamps to USB memory device
  • Source can be any input channel or math waveform
  • User defined duration –from 30 minutes to 8 hours in 30 minute steps
  • Waveform storage determined by time base setting, trigger rate and USB write time
• Digital Real-time Sampling:
  • 10X oversampling all the time
  • No change in sample rate as channels turn on
  • Full rated bandwidth on all channels
  • Identical channel performance
  • No loss of signal details
  • Better interpolation results
  • Superior ease-of use: No equivalent time mode, No confusing displays, and No additional menus & readouts
• Autoset and Signal Auto-ranging:
  • Activates measurements that are commonly-used for the signal
  • Gives a stable display at the press of a button
  • Detects whether the waveform is sine, square or video
  • Autoset can be de-activated for teaching
  • It provides a choice of display views: (Multi-Cycle View, Pulse View, Rising Edge, &Falling Edge)
• Built-in Context-sensitive Help: More than 25 help screens and more than 80 important topics
• Probe Check Wizard coaches you through probe compensation and checks your probe scaling:
  • Users need to compensate anypassive probe each time they hook it up to any oscilloscope
  • Incorrect probe compensation or probe scaling can cause you to make an incorrect judgment and waste valuable time
• Multiple-language User Interface
• 5.7in.(144mm) Active TFT Color Display
• Small Footprint and Lightweight–Only 4.9in. (124mm) Deep and 4.4lb. (2kg)

Connectivity

• USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage, Printing, and Connecting a USB Keyboard
• USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge-compatible Printer
• Includes National Instrument’s LabVIEW SignalExpress TE Limited Edition and Tektronix OpenChoice Software for Connecting Your Bench

Performance You Need at a Price You Can Afford

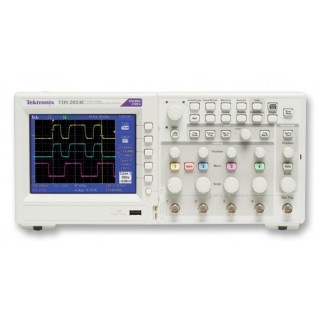

The Tektronix TDS2022C 200 MHz, 2 Channel, 2GS/s Digital Storage Oscilloscope provides you with afford able performance in a compact design. Packed with standard features – including USB connectivity, 16 automated measurements, limit testing, datalogging, and context-sensitive help– the Tektronix TDS2022C oscilloscope help you get more done, in less time.

Digital Precision for Accurate Measurements

With up to 200 MHz bandwidth and 2GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. Tektronix proprietary sampling technology provides real-time sampling with a minimum of 10X over sampling on all channels, all the time to accurately capture your signals. Sampling performance is not reduced when using multiple channels.

Critical Tools for Troubleshooting Your Device

The Tektronix TDS 2022C offers tools such as the Advanced triggers – rising/falling edge, pulse width, and video–help you quickly isolate your signals of interest. Once you’ve captured a signal, advanced math capabilities and automated measurements can speed your analysis. Quickly perform an FFT or add, subtract, or multiply waveforms. Sixteen automated measurements quickly and reliably calculate important signal characteristics such as frequency or rise time, while the built-in Limit Test function enables you to easily identify problems in your signal.

Designed to Make Your Work Easy

The Tektronix TDS-2022-C Series oscilloscopes are designed with the ease of use and familiar operation you have come to expect from Tektronix.

Intuitive Operation

The intuitive user interface with dedicated per-channel vertical controls, auto-setup, and auto-ranging makes these instruments easy to use, reducing learning time and increasing efficiency.



Quickly and easily capture waveforms with advanced triggering



See all the details other oscilloscopes might miss with Tektronix proprietary digital real-time sampling



Quickly perform an FFT with the advanced math functions

Help When You Need It, Where You Need It

The built-in Help menu provides you with important information on your oscilloscope’s features and functions. Help is provided in the same languages as the user interface.

Probe Check Wizard

Check out your probe compensation before making measurements with just one button that starts a fast, easy procedure.

Limit Test

The Tektronix TDS2022-C oscilloscope can automatically monitor source signals and output Pass or Fail results by judging whether the input waveform is within predefined boundaries. Specifications can be triggered on violation including stopping waveform acquisition, stopping Limit Test functions, saving the failed waveform data or screen image to a USB memory device, or any combination of the above. This is an ideal solution for manufacturing or service applications where you need to make decisions quickly.

Flexible Data Transfer

The USB host port on the front panel enables you to save your instrument settings, screenshots, and waveform data in a flash. The Tektronix TDS-2022/C's built-in datalogging feature means you can setup your oscilloscope to save user-specified triggered waveforms to a USB memory device for up to 8 hours.

Easy PC Connectivity

Easily capture, save, and analyze measurements results by connecting to your PC with the rear-panel USB device port and the included copy of Open Choice PC Communications Software. Simply pull screen images and waveform data into the stand-alone desktop application or directly into Microsoft Word and Excel. Alternatively, if you prefer not to use your PC, you can simply print your image directly to any PictBridge-compatible printer.

Connect Your Bench for Intelligent Debug

Every TDS2000C Series oscilloscope ships with an included copy of the Limited Tektronix Edition of National Instrument’s LabVIEW Signal Express for basic instrument control, datalogging, and analysis. Signal Express supports the range of Tektronix bench instruments enabling you to connect your entire test bench. You can then access the feature-rich tools packed into each instrument from one intuitive software interface. This allows you to automate complex measurements requiring multiple instruments, log data for an extended period of time, time correlate data from multiple instruments, and easily capture and analyze your results, all from your PC. Only Tektronix offers a connected test bench of intelligent instruments to simplify and speed debug of your complex design.
