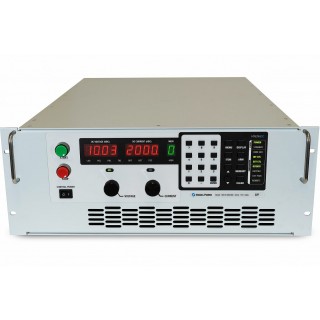

Magna power Power Supply TSA800-16, Programmable DC Power Supply 렌탈 > DC파워서플라이

1번째 이미지 새창

Magna power Power Supply TSA800-16, Programmable DC Power Supply 렌탈 요약정보 및 구매

제조사	Magna power
브랜드	Magna power
품명	DC Power Supply
모델명	TSA800-16
판매가격	전화문의
	(상기 금액은 부가세 별도입니다.)

상품 정보

상품정보
관련상품 0
상품문의 0

상품 상세설명

렌탈 및 기술문의 : 010-4221-0660

TS Series

226 models
3U to 8U rack-mount
5 kW to 50 kW power levels
5 Vdc to 6000 Vdc output voltage
0.8 Adc to 4000 Adc output current
SCPI Remote Programming API
High Accuracy Measurements
Programmable Protection Limits
NI LabVIEW™ and IVI Driver

There are 226 different models in the TS Series spanning power levels: 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW, 50 kW.

To determine the appropriate model:

Select the desired Max Voltage (Vdc) from the left-most column.
Select the desired Max Current (Adc) from the same row that contains your desired Max Voltage.
Construct your model number according to the model ordering guide.

	5 kW	10 kW	15 kW	20 kW	25 kW	30 kW	40 kW	50 kW
	3U	3U	3U	4U/6U**	4U/6U**	6U	8U	8U
Voltage Maximum (Vdc)	Current Maximum (Adc)								Ripple (mVrms)	Efficiency
5	900	1800*	2700*	N/A	N/A	N/A	N/A	N/A	50	84%
8	600	N/A	N/A	N/A	N/A	N/A	N/A	N/A	40	85%
10	500	900	N/A	2000***	2700*	N/A	4000	N/A	40	87%
16	300	600	900	N/A	N/A	1800	N/A	N/A	35	87%
20	250	500	750	1000	1250	1500	2000	2500	40	88%
25	200	400	600	800	1000	1200	1600	2000	40	89%
32	150	300	450	625	781	900	1250	1562	40	89%
40	125	250	375	500	625	750	1000	1250	40	89%
50	100	200	300	400	500	600	800	1000	50	89%
60	83	166	249	333	416	498	666	832	60	87%
80	62	124	186	250	312.5	372	500	625	60	90%
100	50	100	150	200	250	300	400	500	60	90%
125	40	80	120	160	200	240	320	400	100	90%
160	31	62	93	125	156	186	250	312	120	90%
200	25	50	75	100	125	150	200	250	125	91%
250	20	40	60	80	100	120	160	200	130	91%
300	16	32	48	66.6	83.3	96	133.2	166.6	160	91%
375	13	26	39	53.3	66.6	78	106.6	133.2	170	92%
400	12	24	36	50	62.4	72	100	125	180	92%
500	10	20	30	40	50	60	80	100	220	92%
600	8	16	24	33.3	41.6	48	66.6	83.2	250	92%
800	6	12	18	25	31.2	36	50	62.4	300	92%
1000	5	10	15	20	25	30	40	50	350	92%
1250	4	8	12	16	20	24	32	40	375	92%
1500	3.3	6.6	9.9	13.3	16.6	19.8	26.6	33.2	400	92%
2000	2.5	5	7.5	10	12.5	15	20	25	450	92%
3000	1.6	3.2	4.8	6.6	8.3	9.6	13.2	16.6	500	92%
4000	1.2	2.4	3.6	5	6.2	7.2	10	12.4	550	92%
5000	1	2	3	4	5	6	8	10	1500	92%
6000	0.8	1.6	2.5	3.3	4.1	5	6.6	8.3	1700	92%

AC Input Voltage (Vac)	Input Current Per Phase (Aac)
208/240 Vac, 1Φ	41	N/A	N/A	N/A	N/A	N/A	N/A	N/A
208/240 Vac, 3Φ	18	36	52	69	85	105	N/A	N/A
380/415 Vac, 3Φ	10	20	29	38	47	57	76	94
440/480 Vac, 3Φ	9	17	25	33	40	50	66	82

* Models marked with an asterisk are special low-voltage high-current models that may vary in size and input current from the standard TS Series models within the same power envelope.

** 20/25 kW models with 380/415, 3Φ input or 440/480 Vac, 3Φ input come in a 4U chassis. 20/25 kW models with 208/240, 3Φ input come in a 6U chassis.

*** Available with 380/415, 3Φ input or 440/480 Vac, 3Φ input only.

PHYSICAL SPECIFICATIONS

Racking Standard

EIA-310

Rear Support Rails

Included

Size and Weight

5 kW Models

3U
5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)
74 lbs (34.57 kg)

Size and Weight

10 kW Models

3U
5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)
94 lbs (42.64 kg)

Size and Weight

15 kW Models

3U
5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)
125 lbs (56.70 kg)

Size and Weight

20 kW Models; 380/415 Vac and 440/480 Vac, 3Φ input

4U
7” H x 19” W x 24” D (17.8 x 48.2 x 60.9 cm)
160 lbs (72.6 kg)

Size and Weight

20 kW Models; 208/240 Vac, 3Φ input

6U
10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)
185 lbs (83.9 kg)

Size and Weight

25 kW Models; 380/415 Vac and 440/480 Vac, 3Φ input

4U
7” H x 19” W x 24” D (17.8 x 60.9 x 48.2 cm)
180 lbs (81.7 kg)

Size and Weight

25 kW Models; 208/240 Vac, 3Φ input

6U
10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)
220 lbs (99.79 kg)

Size and Weight

30 kW Models

6U
10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)
245 lbs (111.13 kg)

Size and Weight

40 kW Models

8U
14” H x 19” W x 24” D (35.6 x 48.2 x 60.9 cm)
315 lbs (142.9 kg)

Size and Weight

50 kW Models

8U
14” H x 19” W x 24” D (35.6 x 48.2 x 60.9 cm)
355 lbs (161.0 kg)

REGULATORY SPECIFICATIONS

EMC

Complies with 2014/30/EU (EMC Directive)
CISPR 22 / EN 55022 Class A

Safety

Complies with EN61010-1 and 2014/35/EU (Low Voltage Directive)

CE Mark

Yes

RoHS Compliant

Yes

ENVIRONMENTAL SPECIFICATIONS

Ambient Operating Temperature

0°C to 50°C

Storage Temperature

-25°C to +85°C

Humidity

Relative humidity up to 95% non-condensing

Temperature Coefficient

0.04%/°C of maximum output voltage
0.06%/°C of maximum output current

Air Cooling

3U and 6U Models

Side air inlet, rear exhaust

Air Cooling

4U and 8U Models

Front and side air inlet, rear exhaust

Water Cooling

With Water Cooling (+WC) Option

25°C maximum inlet temperature
1.5 GPM minimum flow rate for 5-15 kW units
3.0 GPM minimum flow rate for 20-30 kW units
4.5 GPM minimum flow rate for 40-50 kW units
80 PSI maximum pressure
1/4” NPT male pipe size (3U/4U models)
1/2” NPT male pipe size (6U/8U models)
Front air intake, rear exhaust (4U/8U models only)

PROGRAMMING INTERFACE SPECIFICATIONS

Front Panel Programming

Stepless aluminum rotary knobs and keypad

Computer Interface

RS232, D-sub DB-9, female (Standard)
LXI TCP/IP Ethernet RJ45 (Option +LXI)
IEEE-488 GPIB (Option +GPIB)

External User I/O Port

Analog and Digital Programming

37-pin D-sub DB-37, female
Referenced to Earth ground; isolated from power supply output
See User Manual for pin layout

Remote Sense Limits (Wired)

Available for models ≤ 1000 Vdc without High Isolation Output (+ISO) option

3% maximum voltage drop from output to load

ACCURACY SPECIFICATIONS

Voltage Programming Accuracy

± 0.075% of max rated voltage

Over Voltage Trip Programming Accuracy

± 0.075% of max rated voltage

Current Programming Accuracy

± 0.075% of max rated current

Over Current Trip Programming Accuracy

± 0.075% of max rated current

Voltage Readback Accuracy

± 0.2% of max rated voltage

Current Readback Accuracy

± 0.2% of max rated current

EXTERNAL USER I/O SPECIFICATIONS

Analog Programming and Monitoring Levels

0-10 Vdc

Analog Output Impedances

Voltage output monitoring: 100 Ω
Current output monitoring: 100 Ω
+10V reference: 1 Ω

Digital Programming and Monitoring Limits

Input: 0 to 5 Vdc, 10 kΩ input impedance
Output: 0 to 5 Vdc, 5 mA drive capacity

AC INPUT SPECIFICATIONS

1Φ AC Input Voltage

1Φ, 2-wire + ground; Available on 5 kW models only

208 Vac (operating range 187 - 229 Vac)
240 Vac (operating range 216 - 264 Vac)

3Φ AC Input Voltage

3Φ, 3-wire + ground

208 Vac (operating range 187 to 229 Vac)
240 Vac (operating range 216 to 264 Vac)
380/400 Vac (operating range 342 to 440 Vac)
415 Vac (operating range 373 to 456 Vac)
440 Vac (operating range 396 to 484 Vac)
480 Vac (operating range 432 to 528 Vac)

Input Frequency

50 Hz to 400 Hz

Power Factor

> 0.92 at maximum power (3Φ Input)
> 0.70 at maximum power (1Φ Input)

AC Input Isolation

±2500 Vac, maximum input voltage to ground

DC OUTPUT SPECIFICATIONS

Voltage Ripple

Model specific. Refer to chart of available models.

Line Regulation

Voltage mode: ± 0.004% of full scale
Current mode: ± 0.02% of full scale

Load Regulation

Voltage mode: ± 0.01% of full scale
Current mode: ± 0.04% of full scale

Stability

± 0.10% for 8 hrs. after 30 min. warm-up

Efficiency

85% to 95%
Model specific. Refer to chart of available models.

Maximum Slew Rate

Standard Models

100 ms for an output voltage change from 0 to 63%
100 ms for an output current change from 0 to 63%

Maximum Slew Rate

Models with High Slew Rate Output (+HS) Option

4 ms for an output voltage change from 0 to 63%
8 ms for an output current change from 0 to 63%

Bandwidth

Standard Models

3 Hz with remote analog voltage programming
2 Hz with remote analog current programming

Bandwidth

Models with High Slew Rate Output (+HS) Option

60 Hz with remote analog voltage programming
45 Hz with remote analog current programming

DC Output Isolation

Models Rated ≤1000 Vdc

±1000 Vdc, maximum output voltage to ground

DC Output Isolation

Models Rated >1000 Vdc or Models with +ISO Option

±(3000 Vdc + Vo/2), maximum output voltage to ground where Vo is the maximum output voltage of the power supply
