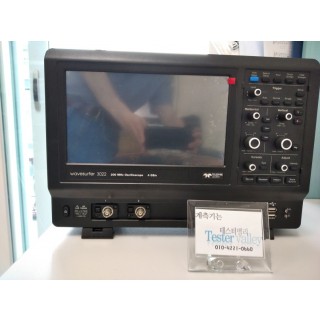

텔레다인르크로이 오실로스코프 중고신품 및

렌탈 문의 (매각처분포함) : 010-4221-0660

◆ 200 MHz, 350 MHz, 500 MHz, 750 MHz bandwidths
 ◆ Long Memory – up to 10 Mpts/Ch
 ◆ 10.1” touch screen display
 ◆ WaveScan – Advanced Search and Find
 ◆ LabNotebook Documentation Tool
 ◆ History Mode – Waveform Playback
 ◆ Serial Data Trigger and Decode
 ◆ 16 Digital Channels with 500 MS/s Sample Rate
 ◆ WaveSource Function Generator
 ◆ Digital Voltmeter
 ◆ Mixed Signal Debug Capabilities
    - Analog and Digital Cross Pattern Triggering
    - Digital Pattern Search and Find
    - Analog and Digital Timing Measurements
    - Activity Indicators

WaveSurfer 3000 oscilloscopes feature an advanced user interface with touch screen simplicity providing quick access to time saving debug tools.

MAUI - A New Wave of Thinking

MAUI is the most advanced oscilloscope user interface. MAUI is designed for touch; all important oscilloscope controls are accessed through the intuitive touch screen. MAUI is made for simplicity; time saving shortcuts and intuitive dialogs simplify setup. MAUI is built to solve; deep set of debug and analysis tools help identify problems and find solutions quickly.

Advanced Anomaly Detection

Combining a fast waveform update rate of 130,000 waveforms/second with History mode waveform playback and WaveScan search and find, the WaveSurfer 3000 is an outstanding tool for waveform anomaly detection.

Capture, Debug, Analyze, Document

The advanced active probe interface gives tremendous flexibility for capturing all types of signals. Debug, analyze and document problems through the use of powerful math and measurement capabilities, sequence mode segmented memory, and LabNotebook.

Multi-Instrument Capabilities

Beyond traditional oscilloscope functionality the WaveSurfer 3000 has a variety of multi-instrument capabilities including waveform generation with a built in function generator, protocol analysis with serial data trigger and decode, logic analysis with an available 16 channel mixed signal option and digital voltmeter measurements.

Investment Protection for Evolving Needs

As your needs evolve your instruments must adapt. The WaveSurfer 3000 provides maximum investment protection with available bandwidth upgrades and field upgradeable capabilities such as MSO, Function Generator and Serial Trigger and Decode.

Fast, Lively Waveform Display

The fast 130,000 waveforms/sec update rate of the WaveSurfer 3000 simplifies anomaly detection and identification. Rapidly changing waveforms are easy to see and visually inspect.

History Mode Waveform Playback

Scroll back in time using History Mode to view previous waveforms and isolate anomalies. Use cursors and measurement parameters to quickly find the source of problems. History mode is always available with a single button press, no need to enable this mode and never miss a waveform.

WaveScan Advanced Search

WaveScan packs powerful complex measurement and search capabilities to analyze and identify waveform anomalies. "Scan" for events that can't be triggered in hardware over periods of hours or even days. Set complex conditions, view search results on the waveform and in a table, and quickly zoom to an event.

LabNotebook Documentation Tool

LabNotebook is a one-button tool to save and restore waveforms, measurements and settings without navigating multiple menus. Saved waveforms can be measured and analyze later both on the oscilloscope or offline using the WaveStudio PC Utility.

Advanced Waveform Capture with Sequence Mode

Use Sequence mode to save waveforms into segmented memory. This is ideal for capturing fast pulses in quick succession or when capturing events separated by long time intervals. Combine Sequence mode with advanced triggers to isolate rare events over time. Trigger times and time between segments are provided for additional insight.

Advanced Active Probe Interface

The advanced active probe interface gives tremendous flexibility for measuring high voltages, high frequencies, currents, or differential signals.

Powerful Math and Measure

With a rich set of math functions and measurement parameters, the WaveSurfer 3000 can measure and analyze every aspect of analog and digital waveforms. Additionally, the WaveSurfer 3000 provides statistics, histicons and trends to show how waveforms change over time.

Protocol Analysis with Serial Trigger and Decode

Decode various serial protocols directly on the waveform with an intuitive, color-coded overlay presenting information in binary, hex, or ASCII. Decode long waveforms and zoom in to see precise byte-by-byte decoding. Use the serial trigger to isolate specific addressed and data. Decoded information can be conveniently displayed in an interactive table.

Built-in Waveform Generation

The built-in WaveSource function generator provides up to 25 MHz and 125 MS/s waveform creation capabilities and includes the ability to upload CSV files saved from an oscilloscope to generate arbitrary waveforms. All the WaveSource controls are integrated directly into the oscilloscope with a dedicated function generator style user interface.

Logic Analysis with 16 channel MSO

With embedded systems growing increasingly more complex, powerful mixed signal debug capabilities are an essential part of modern oscilloscopes. The 16 integrated logic channels can be used to capture, view and measure digital signals and decode serial busses alongside analog channels for mixed signal debug.

Digital Voltmeter

The Digital Voltmeter option activates an integrated 4-digit digital voltmeter and 5-digit frequency counter that operates through the same probes already attached to the oscilloscope channels. Real-time measurements can be viewed on the screen at all times or view more details through a dedicated user interface display. Measurements continue to be updated even when the triggering system is stopped. The DVM license key can be downloaded at no charge from teledynelecroy.com/redeem/dvm/.
