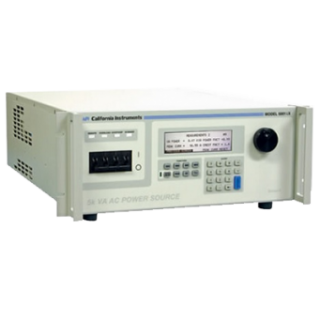

임대서비스용 5KVA AC 파워소스

제조사	CALIFORNIA INSTRUMENTS
브랜드	AMETEK, California Instruments
품명	High Power AC and DC Power Source
모델명	5001 iX
판매가격	전화문의
	(상기 금액은 부가세 별도입니다.)

상품 정보

상품정보
관련상품 0
상품문의 0

상품 기본설명

임대서비스용 5KVA AC 파워소스

상품 상세설명

임대서비스 및 기술상담 : 010-4221-0660

California Instruments i-iX Series II : Specifications

Operating Modes
Model	iX Series II	i Series II
Modes	AC, DC or AC+DC	AC or DC

AC Mode Output
Frequency	Range: 16.00-1000 Hz (Note: Voltage on 300 V range derates from 300 Vrms max at 500 Hz to 150 Vrms max at 1000 Hz; See V-F rating chart. below)
Total Power	3001i/iX: 3000 VA, 5001i/iX: 5000 VA, 9003i/iX: 3000 VA 3ø, with mode iX: 9000 VA 1ø, 10001i/iX: 10000 VA, 15001i/iX: 15000 VA, 15003i/iX: 5000 VA/ø 3ø, with mode iX: 15000 VA/ø 1ø
Load Power Factor	0 to unity at full output VA

AC Mode Voltage
Voltage Ranges	Range	VLow	VHigh
	AC	0-150 V	0-300 V
	AC+DC	0-150 V	0-300 V

	Load Regulation (with ALC on)	< 0.2%
	Load Regulation (with ALC off)	< 0.5% DC to 100 Hz, < 0.6% 100 Hz to 500 Hz in high voltage range, < 2.2% 100 Hz to 500 Hz in low voltage range, < 3% 500 Hz to 1000 Hz
	Line Regulation	< 0.1% for 10% line change
Output Noise (20 kHz to 1 MHz)	< 250 mVrms typ., < 500 mVrms max.
Harmonic Distortion (Linear)	< 1% from 16 - 66 Hz, < 2% at 400 Hz, < 3% at 800 Hz (Full resistive load)
DC Offset	< 20 mV External Amplitude Modulation: Depth: 0 - 10 %, Frequency: DC - 2 KHz
Isolation Voltage	300 Vrms output to chassis

AC Mode Current
Model	Model	3001 i/iX	5001 i/iX	9003 i/iX 3ø
Steady State AC Current	300 V range	11.1	18.5	11.1 /ø
	150 V range	22.2	37.0	22.2 /ø
Note: Constant power mode provides increased current at reduced voltage (See chart below)

Model	Model	10001 i/iX	15001 i/iX	15003 i/iX 3ø
Steady State AC Current	300 V range	37.0	55.5	18.5 /ø
	150 V range	74.0	111.0	37.0 /ø
Note: Constant power mode provides increased current at reduced voltage (See chart below)

Model	Model	3001 i/iX	5001 i/iX	9003 i/iX 3ø
Peak Repetitive AC Current	High range	96.0	96.0	96.0 /ø
	Low range	110.0	110.0	110.0 /ø

Model	Model	10001 i/iX	15001 i/iX	15003 i/iX 3ø
Peak Repetitive AC Current	High range	192.0	288.0	96.0 /ø
	Low range	220.0	330.0	110.0 /ø

Programming Accuracy	Voltage (rms): ± 0.2 of range, 16 to 1000 Hz, Frequency: ± 0.01 % of programmed value, Current Limit: ± 0.5 % of programmed value, Phase: < 1.5° with balanced load at 50/60 Hz
Programming Resolution	Voltage (rms): 100 mV, Frequency: 0.01 Hz from 16 - 81.91 Hz, 0.1 Hz from 82.0 - 819.1 Hz, 1 Hz from 820-1000 Hz, Current Limit: 0.1 A, Phase, 0.1°
Output Relay	Push-button controlled or bus controlled output relay
Output Impedance (iX Only)	Programmable Z on 3001iX, 5001iX, 9003iX and 15003iX (3ø mode only) for 50 Hz fundamental
Resistive	Range: 17 - 1000 mOhm,resolution: 4 mOhm accuracy, 2 % FS
Inductive	Range: 230 - 1000 μH, resolution: 4 μH, accuracy: 2 % FS

Constant Power AC Mode - Available Max. AC Current

V-F Rating Chart - 300 Volt Range

Measurements - Standard (AC Measurements)
Parameter	Frequency	RMS Voltage	RMS Current	Peak Current
Range	16-500 Hz	0-300 V	0-40 A	0-120 A
Accuracy* (±) 0.01% + 0.01 Hz	< 100 Hz 100 - 500 Hz	0.5 V + 0.02% 0.1 V + 0.02%	0.5 A + 0.02% 0.1 A + 0.02%	0.5 A + 0.02% 0.1 A + 0.02%
Resolution*	0.01 Hz	10 mV	1 mA	1 mA

Parameter	Crest Factor	Real Power	Apparent Pwr	Pwr Factor
Range	0.00-6.00	0-6 kW	0-6 kVA	0.00-1.00
Accuracy* (±) 0.01% + 0.01 Hz	0.05 0.05	10 W + 0.1% 20 W + 0.1%	10 VA + 0.1% 20 VA + 0.1%	0.01 0.02
Resolution*	0.01	1 W	1 VA	0.01

Parameter	DC Voltage	DC Current	Power
Voltage Ranges	0-300 V	0-40 A	0-6 kW
Accuracy* (±) 0.01% + 0.01 Hz	150 mV 150 mV	70 mA 70 mA	15 W 15 W
Resolution*	10 mV	1 mA	1 W
* Measurement system bandwidth = DC to 48 kHz. Accuracy specifications are valid above 100 counts. Current and Power Accuracy specifications are times two for 10001i/iX /30003i/iX and times three for 15001i/iX and 9003i/iX and 15003i/iX with MODE-iX option when in single phase mode. For 10001i/iX, 15001i/iX and 30003i/ iX, resolution decreases by factor of 10, ranges for current and power increases by factor of three. PF accuracy applies for PF > 0.5 and VA > 50% of range.

Measurements - Harmonics
Parameter	Frequency Fundamental Harmonics	Phase	Voltage	Current
Range	16.00-500.0 Hz / 32.00 Hz - 48.00 kHz	0.0 - 360.0°	Fundamental Harmonics 2 - 50	Fundamental Harmonics 2 - 50
Accuracy* (±)	0.01% + 0.01 Hz	2° typ.	250 mV 0.1% + 250 mV+0.1% /1 kHz	50 mA/0.1% + 50 mA +0.1% /1 kHz
Resolution	0.01 Hz	0.5°	10 mV / 10 mV	10 mA / 10 mA
* Accuracy specifications are valid above 100 counts. Accuracy specifications are times three for three phase mode. Harmonics frequency range in three phase mode is 32 Hz - 16 kHz. Resolution decreases by factor of 10 for 9003iX and 15003iX with Mode-iX option in 1 phase mode and for 10001iX, 15001iX and 30003i/iX.

DC Mode Output
Power (Max at full scale of DC Voltage Range)	3001i/iX: 2100 W, 5001i/iX: 3500 W, 9003i/iX: 2100 W/ø 3ø, 6300 W/ø 1ø, 10001i/iX: 7000 W, 15001i/iX: 10500 W, 15003i/iX: 3500 W/ø 3ø, 10500 W/ø 1ø
Voltage Ranges	Range: Low: 200 Vdc, High: 400 Vdc
Line Regulation	< 0.1% FS or 10% line change
Output Noise	< 250 mV rms typ., < 500 mV rms max., (20 kHz to 1 MHz)

Max DC Current (Maximum current at 65% of V Range)
Model	3001 i/iX	5001 i/iX	9003 i/iX	9003 i/iX 3ø
400V range	7.8	13	23.4	7.8
200V range	15.6	26	46.8	15.6

Model	10001 i/iX	15001 i/iX	15003 i/iX 3ø
400V range	26	39	13
200V range	52	78	26
Current Limit	Programmable from 0 A to maximum current for selected range

AC+DC Mode Output
Output Power (iX only)	Full AC Power if DC component is less than 20% of full scale voltage, Full DC power if DC component is above 20%

Storage
Non Volatile Mem. storage	16 instrument setups, 200 user defined waveforms

Waveforms
Waveform Types	i Series II: Sine, iX Series II: Sine, Square, Clipped sine, User defined
User defined waveform storage	Four groups of 50 user defined arbitrary waveforms of 1024 points for a total of 200 (One group can be active at a time)

System Interface
Inputs	Remote shutdown, External Sync, Clock/Lock (option)
Outputs	Function Strobe, Clock/Lock (option)

Protection
Over Load	Constant Current or Constant Voltage mode
Over Temperature	Automatic shutdown

Remote Control
IEEE-488 Interface	IEEE-488 (GPIB) talker listener. Subset: AH1, C0, DC1, DT1, L3, PP0, RL2, SH1, SR1, T6, IEEE-488.2 SCPI Syntax
RS232C Interface	9 pin D-shell connector, Handshake: CTS, RTS, Data bits: 7,8, Stop bits: 1, 2, Baud rate: 9600, 19200, 38400, 57600, 115200, IEEE-488.2 SCPI Syntax (Supplied with RS232C cable)

DC Mode Output
Voltage	3001 and 9003: 208-240 ± 10% Vac, (L-N, 1ø), All other models: Standard: 208-240 ± 10% Vac, (L-L, 3ø), Option -400: 400-480 ± 10% Vac, (L-L, 3ø) (Input range must be specified when ordering)

Max DC Current (Maximum current at 65% of V Range)
Model	3001i/iX	5001i/iX	9003i/iX
187-264V	25 A	23 A	75 A
360-528V	N/A	12 A	N/A

Model	10001 i/iX	15001 i/iX	15003 i/iX 3ø
187-264V	46 A	69 A	69 A
360-528V	24 A	36 A	36 A

Inrush Current per chassis	< 100 Apk for 100 μs at 208-240 V, < 50 Apk for 100 μs at 400-480 V
Line Frequency	50-60 Hz ± 10 %
Efficiency	75% typical
Power Factor	0.6 typical

AC Service
Regulatory	IEC61010, EN50081-2, EN50082-2, CE EMC and Safety Mark requirements
RFI Suppression	CISPR 11, Group1 , Class A
Rear Panel Connectors	AC Input & Output terminal block with cover, IEEE-488 (GPIB) connector (rear panel), 9 pin D-Shell RS232C connector, Remote voltage sense terminal block, System Interface Connector, RS232 DB9 to DB9 cable supplied

Physical Dimensions
Dimensions	Height: 7” (178 mm), Width: 19” (483 mm), Depth: 24” (610 mm) (depth includes rear panel connectors)
Weight	per 5001i/iX Chassis: Net: 61 lbs / 28 Kg, Shipping: 115 lbs / 52 Kg
Vibration and Shock	Designed to meet NSTA project 1A transportation levels
Air Intake/Exhaust	Forced air cooling, side air intake, rear exhaust.
Operating Humidity	0 to 95 % RAH, non condensing.
Temperature	Operating: 0 to 40° C, Storage: -20 to +85° C

The iX Series II represents a new generation of AC and DC power source that addresses increasing demands on test equipment to perform more functions at a lower cost. By combining a flexible AC/DC power source with a high performance power analyzer, the iX Series II systems are capable of handling complex applications that have traditionally required multiple instruments.

The sleek integrated approach of the iX Series II avoids the cable clutter that is commonly found in AC test systems. The i/iX Series II is rackmountable with a 4U chassis design. All connections are made internally and the need for external digital multimeters, power harmonics analyzer and current shunts or clamps is completely eliminated. Using a state of the art digital signal processor in conjunction with precision high resolution A/D converters, the iX Series II provides more accuracy and resolution than can be found in some dedicated harmonic power analyzers. Since many components in the iX Series II are shared between the AC/DC source and the power analyzer, the total cost of the integrated system is less than the typical cost of a multiple unit system.

For less demanding applications, the Compact iX Series provides similar output and transient capabilities as the iX Series II, as well as basic measurements.

Features And Benefits
Key Features

3000 VA to 15000 VA of AC Output Power
Combines AC/DC source and power analyzer
Harmonic analysis of Voltage and Current
Programmable Impedance
AC, DC and AC+DC Output Modes
Multiple Chassis Configurations
Powerful output transient generation
High Crest Factor Capability
Arbitrary waveform generation
IEC 61000-3-2 and IEC 61000-3-3

Easy To Use Controls
Both the iX Series II and i Series II are microprocessor controlled and can be operated from an easy to use front panel keypad. Functions are grouped logically and are directly accessible from the keypad. This eliminates the need to search through various levels of menus and/or soft keys. A large analog control knob can be used to quickly slew output parameters. This knob is controlled by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.

Applications
With precise output regulation and accuracy, the iX Series II AC and DC sources address many application areas for AC and DC power testing. The iX also provides a high load current capability, multi or single phase output modes, and built-in power analyzer measurements. Additional features including line distortion simulation (LDS), arbitrary waveform generation, and programmable output impedance address requirements for product quality and regulatory compliance testing.

Product Evaluation and Test
Increasingly, manufacturers of electronic equipment and appliances are required to fully evaluate and test their products over a wide range of input line conditions. The built-in output transient generation and readback measurement capability offers the convenience of an easy to use and integrated test system.

Avionics
With an output frequency range to 1000 Hz, at up to 150 VRMS, the iX Series II is well suited for aerospace applications. Precise frequency control and accurate load regulation are key requirements in these applications. The standard IEEE-488 control interface and SCPI command language provide for easy integration into existing ATE systems. Since the iX Series II can eliminate the need for several additional pieces of test equipment and only occupies 7 inches of rack space (4U), saving both cost and space. Instrument drivers for popular programming environments such as National Instruments LabView, DO-160, ABD-0100, MIL-STD-704A-F, and Boeing 7E73B-0147 are available to speed up system integration.

Regulatory Testing
As governments are moving to enforce product quality standards, regulatory compliance testing is becoming a requirement for a growing number of manufacturers. The iX Series II is designed to meet AC source requirements for use in Euronorm EN 61000 compliance testing. For flicker testing, the programmable output impedance capability of the 3001iX, 5001iX and 15003iX can be used to create the required IEC 725 reference impedance.

Multi-Box Configurations
For high power applications, two or three 5001i/iX chassis can be combined to provide 10 to 15 kVA of single or three phase power.

A 9003iX, 15003iX or 15003i three phase configuration can be ordered with the MODE-iX option. This option allows automatic switching between single or three phase output mode. In single phase mode, all current is available on phase A. The MODE-iX option switches the output from all three 5001i/iX amplifiers to a single output connector. Without the MODE-iX option, 15003i/iX systems are configured for three phase operation.

High Crest Factor
With a crest factor of up to 5:1, the i/iX Series II AC source can drive difficult nonlinear loads with ease. Since many modern products use switching power supplies, they have a tendency to pull high repetitive peak currents. The 5001iX can deliver up to 110 Amps of repetitive peak current (low range) to handle such loads.

Remote Control
Standard IEEE-488 and RS232C remote control interfaces allow programming of all instrument functions from an external computer. The popular SCPI command protocol is used for programming. Drivers for several popular instrumentation programming environments are available to facilitate systems integration of the i/iX Series II.

Instrument Control Software
Windows® Instrument Control Software is provided with the iX and i Series II. This software provides easy access to the power sources capabilities without the need to develop any custom code. The following functions are available through this GUI program:

Steady state output control (all parameters)
Create, run, save, reload and print transient programs
Generate and save harmonic waveforms [iX only]
Generate and save arbitrary waveforms [iX only]
Download data from a digital storage oscilloscope [iX only]
Measure and log standard measurements
Capture and display output voltage and current waveforms [iX only]
Measure, display, print and log harmonic voltage and current measurements [iX only]
Run IEC61000-4-11, IEC61000-4-14 and IEC61000-4-28 test programs
Display IEEE-488 or RS232C bus traffic to and from the AC Source to help you develop your own test programs.
