| Characteristics | |
| Bandwidth | DC to ≥120 MHz |
| Rise Time | ≤2.92 ns |
| Max RMS Current | 30 A |
| Max Peak Pulse Current | 50 A |
| Minimum Sensitivity | 1 mA (on oscilloscopes that support 1 mV/div setting) |
| Current Ranges | 5 A and 30 A |
| Max Bare-wire Voltage | Use insulated wire only |
| Typical Characteristics | |
| DC Accuracy | ±1% typical ±3% warranted |
| Max Amp-second Product | 500 A*µs (in 30 A Range) |
| Insertion Impedance | 1 mΩ at 10 kHz 3.5 mΩ at 100 kHz 0.08 Ω at 1 MHz 0.15 Ω at 10 MHz 0.7 Ω at 100 MHz 0.85 Ω at 120 MHz |
| Signal Delay | 14.5 ns |
| Environmental | |
| Temperature | |
| Operating | 0 ºC to +50 ºC |
| Nonoperating | -40 ºC to +75 ºC |
| Humidity | |
| Operating | 5% to 95% Relative Humidity (RH) at up to +30 °C; 5% to 85% RH above 30 °C up to +50 °C, noncondensing |
| Nonoperating | 5% to 95% Relative Humidity (RH) at up to +30 °C; 5% to 85% RH above 30 °C up to +75 °C, noncondensing |
| Altitude | |
| Operating | Up to 3,000 m (10,000 ft.) Nonoperating: Up to 12,192 m (40,000 ft.) |
| Nonoperating | Up to 12,192 m (40,000 ft.) |
| Insertion Impedance | 1 mΩ at 10 kHz |
| Physical Characteristics | ||
| Probe Head Size | cm | in. |
| Height | 3.2 | 1.25 |
| Width | 1.6 | 0.625 |
| Length | 20 | 7.77/td> |
| Other Dimensions | ||
| Cable Length | 200 | 79 |
| Max Conductor Diameter | 0.38 | 0.15 |
| Weight | kg | lb. |
| Shipping | 1.55 | 3.44 |
| Power Requirements | ||

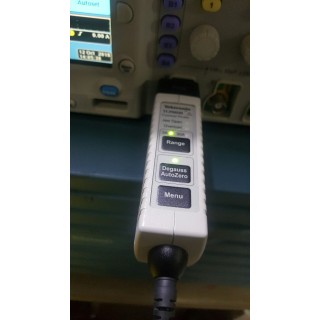

| TCP0030 is powered directly by the DPO7000 and DPO4000 Series Oscilloscopes using TekVPI™ interface | ||
