OPS 시리즈 ODA파워서플라이, 정밀급 프로그래머블 DC파워서플라이 요약정보 및 구매

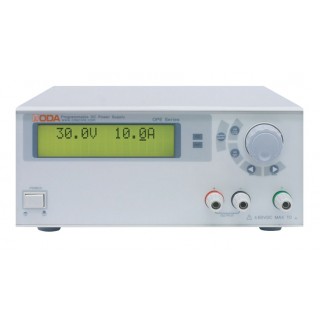

ODA DC 파워서플라이

상품 선택옵션 0 개, 추가옵션 0 개

제조사 오디에이테크놀로지
브랜드 ODA
품명 DC파워서플라이
시리즈명 OPS 시리즈
가격대 380,000원~18,000,000원
(상기 금액은 부가세 별도입니다.)

제품관련 문서 / 파일

상품 정보

상품 기본설명

ODA DC 파워서플라이

상품 상세설명
















 SELECT GUIDE  (모델명 구성 예 : OPS - 전압 전류 )

      전류
전압

1A

2A

3A

5A

10A

30A

50A

100A

200A

500A

9V

OPS-91

OPS-92

OPS-93

OPS-95

OPS-910

OPS-930

OPS-950

OPS-9100

OPS-9200

OPS-9500

18V

OPS-181

OPS-182

OPS-183

OPS-185

OPS-1810

OPS-1830

OPS-1850

OPS-18100

OPS-18200

OPS-18500

30V

OPS-301

OPS-302

OPS-303

OPS-305

OPS-3010

OPS-3030

OPS-3050

OPS-30100

OPS-18200

OPS-30500

50V

OPS-501

OPS-502

OPS-503

OPS-505

OPS-5010

OPS-5030

OPS-5050

OPS-50100

OPS-50200

OPS-50500

80V

OPS-801

OPS-802

OPS-803

OPS-805

OPS-8010

OPS-8030

OPS-8050

OPS-80100

OPS-80200

OPS-80500

100V

OPS-1001

OPS-1002

OPS-1003

OPS-1005

OPS-10010

OPS-10030

OPS-10050

OPS-100100

OPS-100200

-

150V

OPS-1501

OPS-1502

OPS-1503

OPS-1505

OPS-15010

OPS-15030

OPS-15050

OPS-150100

OPS-150200

-

200V

OPS-2001

OPS-2002

OPS-2003

OPS-2005

OPS-20010

OPS-20030

OPS-20050

OPS-200100

-

-

300V

OPS-3001

OPS-3002

OPS-3003

OPS-3005

OPS-30010

OPS-30030

OPS-30050

OPS-300100

-

-

500V

OPS-5001

OPS-5002

OPS-5003

OPS-5005

OPS-50010

OPS-50030

OPS-50050

-

-

 -



▼ SPECIFICATIONS

Model

OPS-303

OPS-305

OPS-307

OPS-3010

Output rating

0~30V, 0~3A

0~30V, 0~5A

0~30V, 0~7A

0~30V, 0~10A

Resolution

Programming/Readback

≤ 250㎶ / ≤ 30㎂

≤ 250㎶ / ≤ 50㎂

≤ 250㎶ / ≤ 70㎂

≤ 250㎶ / ≤ 100㎂

Display Meter

1mV / 100㎂

1mV / 100㎂

1mV / 1mA

1mV / 1mA

Programming Accuracy (@25℃ ±5℃)±(%of output + offset)

Voltage

0.05% + 10mV

0.05% + 10mV

0.05% + 10mV

0.05% + 10mV

Current

0.15% + 5mA

0.15% + 5mA

0.2% + 10mA

0.2% + 10mA

Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)

Voltage

0.05% + 5mV

0.05% + 5mV

0.05% + 5mV

0.05% + 5mV

Current

0.08% + 3mA

0.08% + 3mA

0.15% + 5mA

0.15% + 5mA

Ripple & Noise

≤ 2mVp-p, ≤ 2mArms

≤ 2mVp-p, ≤ 2mArms

≤ 2mVp-p, ≤ 2mArms

≤ 2mVp-p, ≤ 2mArms

Load Regulation

2mV, 500㎂

2mV, 500㎂

2mV, 500㎂

2mV, 500㎂

Line Regulation

500㎶, 500㎂

500㎶, 500㎂

500㎶, 500㎂

500㎶, 1mA

Command Processing Time

＜32ms

＜32ms

＜32ms

＜32ms

Voltage Programming Speed(No load)

Rising time

≤ 7.5V/㎳

≤ 7.5V/㎳

≤ 7.5V/㎳

≤ 7.5V/㎳

Falling time

≤ 3V

≤ 3V/㎳

≤ 3V/㎳

≤ 3V/㎳

Transient Response time

Less than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa



Model

OPS-503

OPS-505

OPS-801

OPS-802

Output rating

0~50V, 0~3A

0~50V, 0~5A

0~80V, 0~1A

0~80V, 0~2A

Resolution

Programming/Readback

≤ 500㎶ / ≤ 30㎂

≤ 500㎶ / ≤ 50㎂

≤ 800㎶ / ≤ 10㎂

≤ 800㎶ / ≤ 20㎂

Display Meter

1mV / 100㎂

1mV / 100㎂

10mV / 100㎂

10mV / 100㎂

Programming Accuracy (@25℃ ±5℃)±(%of output + offset)

Voltage

0.05% + 12mV

0.05% + 12mV

0.05% + 35mV

0.05% + 35mV

Current

0.15% + 5mA

0.15% + 5mA

0.15% + 5mA

0.15% + 5mA

Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)

Voltage

0.05% + 6mV

0.05% + 6mV

0.05% + 18mV

0.05% + 18mV

Current

0.08% + 3mA

0.08% + 3mA

0.08% + 3mA

0.08% + 3mA

Ripple & Noise

≤ 3mVp-p, ≤ 2mArms

≤ 3mVp-p, ≤ 2mArms

≤ 6mVp-p, ≤ 2mArms

≤ 6mVp-p, ≤ 2mArms

Load Regulation

2mV, 500㎂

2mV, 500㎂

3mV, 500㎂

3mV, 500㎂

Line Regulation

500㎶, 500㎂

500㎶, 500㎂

1mV, 500㎂

1mV, 500㎂

Command Processing Time

＜32ms

＜32ms

＜32ms

＜32ms

Voltage Programming Speed(No load)

Rising time

≤ 7.5V/㎳

≤ 7.5V/㎳

≤ 7.5V/㎳

≤ 7.5V/㎳

Falling time

≤ 3V/㎳

≤ 3V/㎳

≤ 3V/㎳

≤ 3V/㎳

Transient Response time

Less than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa

공통사항

RS-232C 기본장착
19inch half x 3U size : 213mm(W) x 132mm(H) x 370mm(D)
(Excepted bumper, 300W 이하)

Option

후면출력, 입력전원(AC100,AC110,AC230), GPIB 통신, GPIB Cable, RS-232C Cable, Analog Signal Input, Analog Signal Output, 랙마운트 키트



 Model

OPS-803

OPS-1001

OPS-1002

OPS-1003

Output rating

0~80V, 0~3A

0~100V, 0~1A

0~100V, 0~2A

0~100V, 0~3A

Resolution

Programming/Readback

≤ 800㎶ / ≤ 30㎂

≤ 1mV / ≤ 10㎂

≤ 1mV / ≤ 20㎂

≤ 1mV / ≤ 30㎂

Display Meter

10mV / 100㎂

10mV / 100㎂

10mV / 100㎂

10mV / 100㎂

Programming Accuracy (@25℃ ±5℃)±(%of output + offset)

Voltage

0.05% + 35mV

0.05% + 40mV

0.05% + 40mV

0.05% + 40mV

Current

0.15% + 5mA

0.15% + 5mA

0.15% + 5mA

0.15% + 5mA

Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)

Voltage

0.05% + 18mV

0.05% + 20mV

0.05% + 20mV

0.05% + 20mV

Current

0.08% + 3mA

0.08% + 3mA

0.08% + 3mA

0.08% + 3mA

Ripple & Noise

≤ 6mVp-p, ≤ 2mArms

≤0.01%mVrms, ≤3mArms

≤0.01%mVrms, ≤3mArms

≤0.01%mVrms, ≤3mArms

Load Regulation

3mV, 500㎂

3mV, 500㎂

3mV, 500㎂

3mV, 500㎂

Line Regulation

1mV, 500㎂

1mV, 500㎂

1mV, 500㎂

1mV, 500㎂

Command Processing Time

＜32ms

＜32ms

＜32ms

＜32ms

Voltage Programming Speed(No load)

Rising time

≤ 7.5V/㎳

≤ 7.5V/㎳

≤ 7.5V/㎳

≤ 7.5V/㎳

Falling time

≤ 3V/㎳

≤ 3V/㎳

≤ 3V/㎳

≤ 3V/㎳

Transient Response time

Less than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa



Model

OPS-1501

OPS-1502

OPS-2001

OPS-3001

Output rating

0~150V, 0~1A

0~150V, 0~2A

0~200V, 0~1A

0~300V, 0~1A

Resolution

Programming/Readback

≤ 1.5mV / ≤ 10㎂

≤ 1.5mV / ≤ 20㎂

≤ 2mV / ≤ 10㎂

≤ 3mV / ≤ 10㎂

Display Meter

10mV / 100㎂

10mV / 100㎂

10mV / 100㎂

10mV / 100㎂

Programming Accuracy (@25℃ ±5℃)±(%of output + offset)

Voltage

0.05% + 50mV

0.05% + 50mV

0.05% + 75mV

0.05% + 95mV

Current

0.15% + 5mA

0.15% + 5mA

0.15% + 5mA

0.15% + 5mA

Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)

Voltage

0.05% + 25mV

0.05% + 25mV

0.05% + 40mV

0.05% + 50mV

Current

0.08% + 3mA

0.08% + 3mA

0.08% + 3mA

0.08% + 3mA

Ripple & Noise

≤0.01%mVrms, ≤3mArms

≤0.01%mVrms, ≤3mArms

≤0.01%mVrms, ≤3mArms

≤0.01%mVrms, ≤3mArms

Load Regulation

4mV, 500㎂

4mV, 500㎂

4mV, 500㎂

4mV, 500㎂

Line Regulation

1mV, 500㎂

1mV, 500㎂

1mV, 500㎂

1mV, 500㎂

Command Processing Time

＜32ms

＜32ms

＜32ms

＜32ms

Voltage Programming Speed(No load)

Rising time

≤ 7.5V/㎳

≤ 7.5V/㎳

≤ 7.5V/㎳

≤ 7.5V/㎳

Falling time

≤ 3V/㎳

≤ 3V/㎳

≤ 3V/㎳

≤ 3V/㎳

Transient Response time

Less than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa

공통사항

RS-232C 기본장착
19inch half x 3U size : 213mm(W) x 132mm(H) x 370mm(D)
(Excepted bumper, 300W 이하)

Option

후면출력, 입력전원(AC100,AC110,AC230), GPIB 통신, GPIB Cable, RS-232C Cable,
Analog Signal Input, Analog Signal Output, 랙마운트 키트







    전류1A2A3A5A10A30A50A100A200A500A
전압
9VOPS-91OPS-92OPS-93OPS-95OPS-910OPS-930OPS-950OPS-9100OPS-9200OPS-9500
18VOPS-181OPS-182OPS-183OPS-185OPS-1810OPS-1830OPS-1850OPS-18100OPS-18200OPS-18500
30VOPS-301OPS-302OPS-303OPS-305OPS-3010OPS-3030OPS-3050OPS-30100OPS-18200OPS-30500
50VOPS-501OPS-502OPS-503OPS-505OPS-5010OPS-5030OPS-5050OPS-50100OPS-50200OPS-50500
80VOPS-801OPS-802OPS-803OPS-805OPS-8010OPS-8030OPS-8050OPS-80100OPS-80200OPS-80500
100VOPS-1001OPS-1002OPS-1003OPS-1005OPS-10010OPS-10030OPS-10050OPS-100100OPS-100200-
150VOPS-1501OPS-1502OPS-1503OPS-1505OPS-15010OPS-15030OPS-15050OPS-150100OPS-150200-
200VOPS-2001OPS-2002OPS-2003OPS-2005OPS-20010OPS-20030OPS-20050OPS-200100--
300VOPS-3001OPS-3002OPS-3003OPS-3005OPS-30010OPS-30030OPS-30050OPS-300100--
500VOPS-5001OPS-5002OPS-5003OPS-5005OPS-50010OPS-50030OPS-50050-- -





ModelOPS-303OPS-305OPS-307OPS-3010
Output rating0~30V, 0~3A0~30V, 0~5A0~30V, 0~7A0~30V, 0~10A
Resolution
Programming/Readback≤ 250㎶ / ≤ 30㎂≤ 250㎶ / ≤ 50㎂≤ 250㎶ / ≤ 70㎂≤ 250㎶ / ≤ 100㎂
Display Meter1mV / 100㎂1mV / 100㎂1mV / 1mA1mV / 1mA
Programming Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage0.05% + 10mV0.05% + 10mV0.05% + 10mV0.05% + 10mV
Current0.15% + 5mA0.15% + 5mA0.2% + 10mA0.2% + 10mA
Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage0.05% + 5mV0.05% + 5mV0.05% + 5mV0.05% + 5mV
Current0.08% + 3mA0.08% + 3mA0.15% + 5mA0.15% + 5mA
Ripple & Noise≤ 2mVp-p, ≤ 2mArms≤ 2mVp-p, ≤ 2mArms≤ 2mVp-p, ≤ 2mArms≤ 2mVp-p, ≤ 2mArms
Load Regulation2mV, 500㎂2mV, 500㎂2mV, 500㎂2mV, 500㎂
Line Regulation500㎶, 500㎂500㎶, 500㎂500㎶, 500㎂500㎶, 1mA
Command Processing Time＜32ms＜32ms＜32ms＜32ms
Voltage Programming Speed(No load)
Rising time≤ 7.5V/㎳≤ 7.5V/㎳≤ 7.5V/㎳≤ 7.5V/㎳
Falling time≤ 3V≤ 3V/㎳≤ 3V/㎳≤ 3V/㎳
Transient Response timeLess than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa
ModelOPS-503OPS-505OPS-801OPS-802
Output rating0~50V, 0~3A0~50V, 0~5A0~80V, 0~1A0~80V, 0~2A
Resolution
Programming/Readback≤ 500㎶ / ≤ 30㎂≤ 500㎶ / ≤ 50㎂≤ 800㎶ / ≤ 10㎂≤ 800㎶ / ≤ 20㎂
Display Meter1mV / 100㎂1mV / 100㎂10mV / 100㎂10mV / 100㎂
Programming Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage0.05% + 12mV0.05% + 12mV0.05% + 35mV0.05% + 35mV
Current0.15% + 5mA0.15% + 5mA0.15% + 5mA0.15% + 5mA
Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage0.05% + 6mV0.05% + 6mV0.05% + 18mV0.05% + 18mV
Current0.08% + 3mA0.08% + 3mA0.08% + 3mA0.08% + 3mA
Ripple & Noise≤ 3mVp-p, ≤ 2mArms≤ 3mVp-p, ≤ 2mArms≤ 6mVp-p, ≤ 2mArms≤ 6mVp-p, ≤ 2mArms
Load Regulation2mV, 500㎂2mV, 500㎂3mV, 500㎂3mV, 500㎂
Line Regulation500㎶, 500㎂500㎶, 500㎂1mV, 500㎂1mV, 500㎂
Command Processing Time＜32ms＜32ms＜32ms＜32ms
Voltage Programming Speed(No load)
Rising time≤ 7.5V/㎳≤ 7.5V/㎳≤ 7.5V/㎳≤ 7.5V/㎳
Falling time≤ 3V/㎳≤ 3V/㎳≤ 3V/㎳≤ 3V/㎳
Transient Response timeLess than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa
공통사항RS-232C 기본장착
19inch half x 3U size : 213mm(W) x 132mm(H) x 370mm(D)
(Excepted bumper, 300W 이하)
Option후면출력, 입력전원(AC100,AC110,AC230), GPIB 통신, GPIB Cable, RS-232C Cable, Analog Signal Input, Analog Signal Output, 랙마운트 키트
 ModelOPS-803OPS-1001OPS-1002OPS-1003
Output rating0~80V, 0~3A0~100V, 0~1A0~100V, 0~2A0~100V, 0~3A
Resolution
Programming/Readback≤ 800㎶ / ≤ 30㎂≤ 1mV / ≤ 10㎂≤ 1mV / ≤ 20㎂≤ 1mV / ≤ 30㎂
Display Meter10mV / 100㎂10mV / 100㎂10mV / 100㎂10mV / 100㎂
Programming Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage0.05% + 35mV0.05% + 40mV0.05% + 40mV0.05% + 40mV
Current0.15% + 5mA0.15% + 5mA0.15% + 5mA0.15% + 5mA
Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage0.05% + 18mV0.05% + 20mV0.05% + 20mV0.05% + 20mV
Current0.08% + 3mA0.08% + 3mA0.08% + 3mA0.08% + 3mA
Ripple & Noise≤ 6mVp-p, ≤ 2mArms≤0.01%mVrms, ≤3mArms≤0.01%mVrms, ≤3mArms≤0.01%mVrms, ≤3mArms
Load Regulation3mV, 500㎂3mV, 500㎂3mV, 500㎂3mV, 500㎂
Line Regulation1mV, 500㎂1mV, 500㎂1mV, 500㎂1mV, 500㎂
Command Processing Time＜32ms＜32ms＜32ms＜32ms
Voltage Programming Speed(No load)
Rising time≤ 7.5V/㎳≤ 7.5V/㎳≤ 7.5V/㎳≤ 7.5V/㎳
Falling time≤ 3V/㎳≤ 3V/㎳≤ 3V/㎳≤ 3V/㎳
Transient Response timeLess than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa
ModelOPS-1501OPS-1502OPS-2001OPS-3001
Output rating0~150V, 0~1A0~150V, 0~2A0~200V, 0~1A0~300V, 0~1A
Resolution
Programming/Readback≤ 1.5mV / ≤ 10㎂≤ 1.5mV / ≤ 20㎂≤ 2mV / ≤ 10㎂≤ 3mV / ≤ 10㎂
Display Meter10mV / 100㎂10mV / 100㎂10mV / 100㎂10mV / 100㎂
Programming Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage0.05% + 50mV0.05% + 50mV0.05% + 75mV0.05% + 95mV
Current0.15% + 5mA0.15% + 5mA0.15% + 5mA0.15% + 5mA
Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage0.05% + 25mV0.05% + 25mV0.05% + 40mV0.05% + 50mV
Current0.08% + 3mA0.08% + 3mA0.08% + 3mA0.08% + 3mA
Ripple & Noise≤0.01%mVrms, ≤3mArms≤0.01%mVrms, ≤3mArms≤0.01%mVrms, ≤3mArms≤0.01%mVrms, ≤3mArms
Load Regulation4mV, 500㎂4mV, 500㎂4mV, 500㎂4mV, 500㎂
Line Regulation1mV, 500㎂1mV, 500㎂1mV, 500㎂1mV, 500㎂
Command Processing Time＜32ms＜32ms＜32ms＜32ms
Voltage Programming Speed(No load)
Rising time≤ 7.5V/㎳≤ 7.5V/㎳≤ 7.5V/㎳≤ 7.5V/㎳
Falling time≤ 3V/㎳≤ 3V/㎳≤ 3V/㎳≤ 3V/㎳
Transient Response timeLess than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa
공통사항RS-232C 기본장착
19inch half x 3U size : 213mm(W) x 132mm(H) x 370mm(D)
(Excepted bumper, 300W 이하)
Option후면출력, 입력전원(AC100,AC110,AC230), GPIB 통신, GPIB Cable, RS-232C Cable,

Analog Signal Input, Analog Signal Output, 랙마운트 키트











관련상품

등록된 상품이 없습니다.

상품문의

등록된 상품문의

상품문의가 없습니다.

회사소개 개인정보처리방침 사이트맵 Home
회사명 티엠웨이  대표 안영상 주소 인천광역시 서구 보듬로 158 블루텍지식산업센터 공존동 624호
사업자 등록번호 279-38-00064 통신판매업신고번호 제 2022-인천서구-0752호 사업자정보확인
전화 070-7621-3327 팩스 02-6455-4427
개인정보 보호책임자 안영상
Copyright © 티엠웨이. All Rights Reserved.
