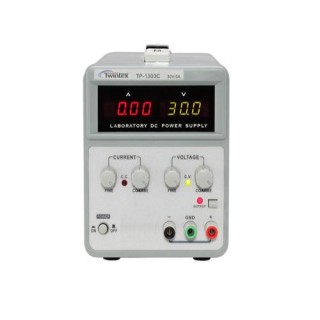

개괄적 소개 : 싱글채널에 컴팩프한 크기의 리니어 파워서플라이로서,
경제적 부담이 매우 저렴한 기종입니다.
파워출력 On/Off 조작이 가능하며, 전압/전류의 거시 또는 미세조정이
가능합니다..
특징
★ Constant voltage and constant current operations
★ Output ON/OFF control
★ High efficiency, light and compact design
★ High power density
★ Over load and reverse polarity protections
★ Dual-color two digital panel meters
사양정보
Model | TP-1303C | TP-1305C | TP-1603C | |
Output | 0~30V/0~3A | 0~30V/0~5A | 0~60V/0~3A | |
Constant voltage operation | ||||
Line regulation | ≤0.01%+3mV | |||
Load regulation | ≤0.01%+3mV | ≤0.02%+5mV | ≤0.01%+3mV | |
Ripple & Noise | ≤2mVrms | |||
Constant current operation | ||||
Line regulation | ≤0.2%+3mA | |||
Load regulation | ≤0.2%+3mA | |||
Display | ||||
Voltmeter | 3 digits LED display | |||
Ammeter | 3 digits LED display | |||
Resolution | 100mV/10mA | |||
Accuracy | Voltage | ±(0.5% reading+2digits) | ||
Current | ±(1% reading+2digits) | |||
Protection | Over load and reverse polarity protections | |||
Power source | AC110V, AC220V or AC110V/220V±10%, 50/60Hz | |||
Operating environment | 0℃~40℃, ≤80%RH | |||
Storage environment | -10℃~70℃, ≤70%RH | |||
Accessories | Power cord x1, Operation manual x1, Test lead x1 | |||
